64-bit ROM silicon serial number integrated circuit in a TO-92-3 package. Features a 1-Wire interface and through-hole mounting. Operates from 2.8V to 6V with a maximum supply current of 5µA. RoHS compliant with a temperature range of -40°C to 85°C.
PackageTO-92-3
MountingThrough Hole
Quick Jump:
Technical Specifications
Maxim DS2401+ technical specifications.
General
| Package/Case | TO-92-3 |
| Data Bus Width | 64b |
| Height | 4.95mm |
| Interface | 1-WIRE |
| Lead Free | Lead Free |
| Length | 4.95mm |
| Max Operating Temperature | 85°C |
| Max Supply Current | 5uA |
| Max Supply Voltage | 6V |
| Memory Type | ROM, |
| Min Operating Temperature | -40°C |
| Min Supply Voltage | 2.8V |
| Mount | Through Hole |
| Package Quantity | 10 |
| Packaging | Bulk |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Weight | 0.016oz |
| Width | 3.94mm |
Compliance
| RoHS | Compliant |
Datasheet
Maxim DS2401+ Datasheet
Download the complete datasheet for Maxim DS2401+ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

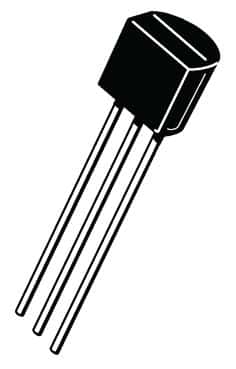

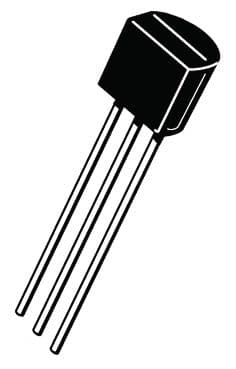

Product Images
