Addressable switch serial interface IC, SPST throw configuration, designed for surface mount applications. Features a 6-pin TSOC package with dimensions of 4mm length, 3.89mm width, and 1.35mm height. Operates within a supply voltage range of 2.8V to 5.25V, with a low operating supply current of 70µA and quiescent current of 24µA. Supports a low level output current of 20mA and operates from 0°C to 70°C. This component is RoHS compliant and lead-free.
MountingSurface Mount
Quick Jump:
Technical Specifications
Maxim DS2413P+ technical specifications.
General
| Height | 1.35mm |
| Lead Free | Lead Free |
| Length | 4mm |
| Low Level Output Current | 20mA |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | 0°C |
| Max Supply Voltage | 5.25V |
| Min Supply Voltage | 2.8V |
| Mount | Surface Mount |
| Operating Supply Current | 70uA |
| Package Quantity | 120 |
| Packaging | Rail/Tube |
| Quiescent Current | 24uA |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Throw Configuration | SPST |
| Width | 3.89mm |
Compliance
| RoHS | Compliant |
Datasheet
Maxim DS2413P+ Datasheet
Download the complete datasheet for Maxim DS2413P+ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

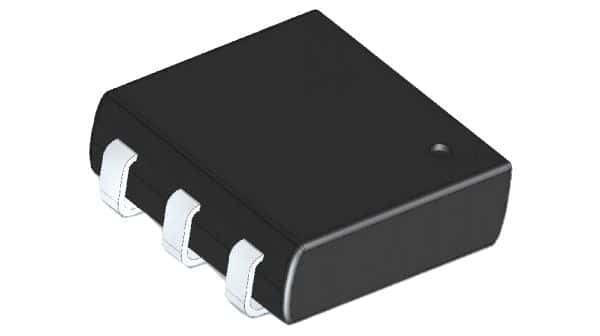

Product Images
