8-bit microcontroller (MCU) with an 8051 core architecture, operating at up to 33MHz. Features 256 bytes of RAM and 64KB ROMless memory. Offers 32 programmable I/Os, 3 timers/counters, and 2 UART channels. Includes EBI/EMI and USART interfaces, with a 4.5V to 5.5V supply voltage range. Packaged in a 44-TQFP surface-mount case.
Frequency33MHz
PackageTQFP
MountingSurface Mount
Quick Jump:
Technical Specifications
Maxim DS80C320-ECG technical specifications.
General
| Access Time | 25us |
| Package/Case | TQFP |
| Core Architecture | 8051 |
| Data Bus Width | 8b |
| Frequency | 33MHz |
| Height | 1.05mm |
| Interface | UART, USART, EBI/EMI |
| Lead Free | Contains Lead |
| Length | 10mm |
| Max Frequency | 25MHz |
| Max Operating Temperature | 70°C |
| Max Supply Voltage | 5.5V |
| Memory Size | 64KB |
| Memory Type | ROM, , ROMless |
| Min Operating Temperature | 0°C |
| Min Supply Voltage | 4.5V |
| Mount | Surface Mount |
| Number of I/Os | 32 |
| Number of Programmable I/O | 32 |
| Number of Timers/Counters | 3 |
| Number of UART Channels | 2 |
| Oscillator Type | External |
| Package Quantity | 160 |
| Packaging | Tray |
| Peripherals | WDT |
| Radiation Hardening | No |
| RAM Size | 256B |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | No |
| Series | 80C |
| Watchdog Timer | Yes |
| Width | 10mm |
Compliance
| RoHS | Not CompliantNo |
Datasheet
Maxim DS80C320-ECG Datasheet
Download the complete datasheet for Maxim DS80C320-ECG to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

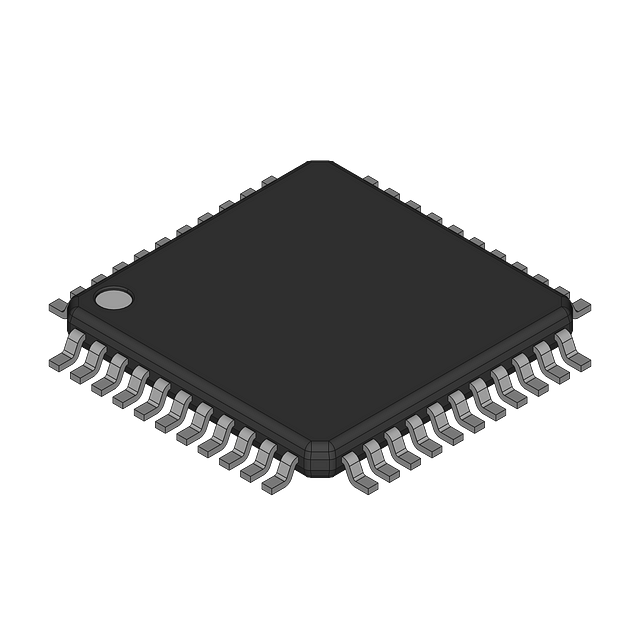

Product Images
