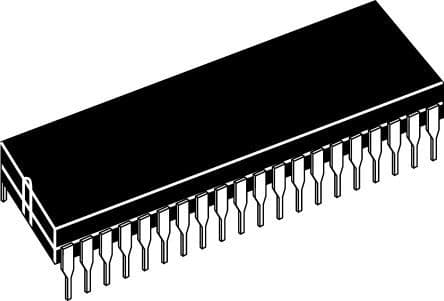

8-bit microcontroller featuring an 8051 core architecture, operating at up to 25MHz. This ROMless MCU offers 256 bytes of RAM and 64KB of memory capacity, with an 8-bit address and data bus. Equipped with 32 programmable I/Os, 3 timers/counters, and a single UART channel, it supports UART, USART, and EBI/EMI interfaces. Designed for through-hole mounting in a 40-pin PDIP package, it operates from 4.5V to 5.5V and includes a watchdog timer.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Maxim DS80C320-MNG+ datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Access Time | 25us |
| Address Bus Width | 8b |
| Package/Case | PDIP |
| Core Architecture | 8051 |
| Data Bus Width | 8b |
| Frequency | 25MHz |
| Height | 4.45mm |
| Interface | UART, USART, EBI/EMI |
| Lead Free | Lead Free |
| Length | 52.71mm |
| Max Frequency | 25MHz |
| Max Operating Temperature | 85°C |
| Memory Size | 64KB |
| Memory Type | ROM, , ROMless, RAM |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 4.5V |
| Mount | Through Hole |
| Number of Bits | 8 |
| Number of I/Os | 32 |
| Number of Programmable I/O | 32 |
| Number of Timers/Counters | 3 |
| Number of UART Channels | 1 |
| Oscillator Type | External |
| Packaging | Rail/Tube |
| Peripherals | WDT |
| Radiation Hardening | No |
| RAM Size | 256B |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Series | 80C |
| Termination | Through Hole |
| Watchdog Timer | Yes |
| Width | 14.61mm |
| RoHS | Compliant |
