8-Bit Microcontroller featuring an 8051 core architecture, operating at a maximum frequency of 33MHz. This surface mount device offers 64KB of ROMless memory and 256B of RAM, with a data bus width of 8 bits. It includes 32 programmable I/O pins, three timers/counters, one UART channel, and an EBI/EMI interface. The microcontroller operates within a temperature range of 0°C to 70°C, with supply voltages from 4.5V to 5.5V, and is housed in a PLCC package.
Frequency33MHz
PackagePLCC
MountingSurface Mount
Quick Jump:
Technical Specifications
Maxim DS80C320-QCL+ technical specifications.
General
| Access Time | 33us |
| Package/Case | PLCC |
| Core Architecture | 8051 |
| Data Bus Width | 8b |
| Frequency | 33MHz |
| Height | 3.96mm |
| Interface | UART, USART, EBI/EMI |
| Lead Free | Lead Free |
| Length | 16.66mm |
| Max Frequency | 33MHz |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | 0°C |
| Max Supply Voltage | 5.5V |
| Memory Size | 64KB |
| Memory Type | ROM, , ROMless |
| Min Supply Voltage | 4.5V |
| Mount | Surface Mount |
| Number of Bits | 8 |
| Number of I/Os | 32 |
| Number of Programmable I/O | 32 |
| Number of Timers/Counters | 3 |
| Number of UART Channels | 1 |
| Oscillator Type | External |
| Packaging | Rail/Tube |
| Peripherals | WDT |
| Radiation Hardening | No |
| RAM Size | 256B |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Series | 80C |
| Watchdog Timer | Yes |
| Width | 16.66mm |
Compliance
| RoHS | Compliant |
Datasheet
Maxim DS80C320-QCL+ Datasheet
Download the complete datasheet for Maxim DS80C320-QCL+ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

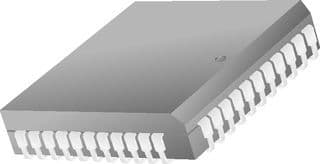

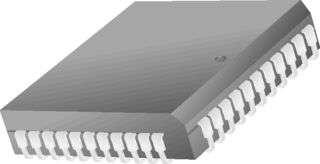

Product Images
