Technical Specifications
Maxim ICL7109EQH+D technical specifications.
General
Package/Case
PLCC
Conversion Rate
30S/s
Input Type
DIFFERENTIAL
Interface
Parallel
Lead Free
Lead Free
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Power Dissipation
400mW
Mount
Surface Mount
Number of A/D Converters
1
Number of Analog Inputs
1
Number of Bits
12
Number of Channels
1
Number of Converters
1
Package Quantity
28
Packaging
Rail/Tube
Radiation Hardening
No
Resolution
12b
RoHS Compliant
Yes
Sampling Rate
30S/s
Supply Type
Dual
Compliance
RoHS
Compliant
Datasheet
Maxim ICL7109EQH+D Datasheet
Download the complete datasheet for Maxim ICL7109EQH+D to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

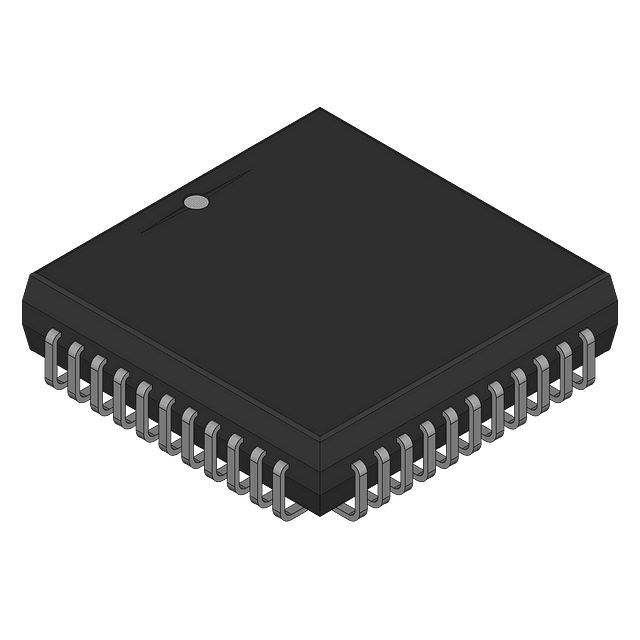

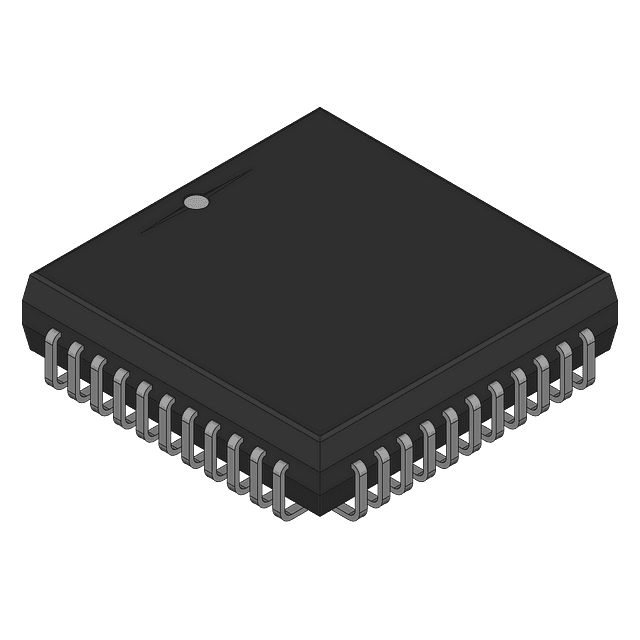

Product Images
