4.5-digit analog-to-digital converter (ADC) for display driving. Features differential input and parallel/UART interface. Operates with a single 5V supply voltage, ranging from 4V to 6V. This surface mount component is housed in a PLCC package, with dimensions of 11.58mm length, 11.58mm width, and 3.96mm height. RoHS compliant with a maximum operating temperature of 70°C.
PackagePLCC
Current1.1mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Maxim ICL7135CQI+ technical specifications.
General
| Package/Case | PLCC |
| Dual Supply Voltage | 5V |
| Height | 3.96mm |
| Input Type | DIFFERENTIAL |
| Interface | Parallel, UART |
| Lead Free | Lead Free |
| Length | 11.58mm |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | 0°C |
| Max Power Dissipation | 800mW |
| Max Supply Voltage | 6V |
| Min Supply Voltage | 4V |
| Mount | Surface Mount |
| Number of A/D Converters | 1 |
| Number of Analog Inputs | 1 |
| Number of Bits | 4 |
| Number of Channels | 1 |
| Number of Converters | 1 |
| Packaging | Rail/Tube |
| Reach SVHC Compliant | Unknown |
| Resolution | 4.5b |
| RoHS Compliant | Yes |
| Supply Current | 1.1mA |
| Supply Type | Single |
| Width | 11.58mm |
Compliance
| RoHS | Compliant |
Datasheet
Maxim ICL7135CQI+ Datasheet
Download the complete datasheet for Maxim ICL7135CQI+ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

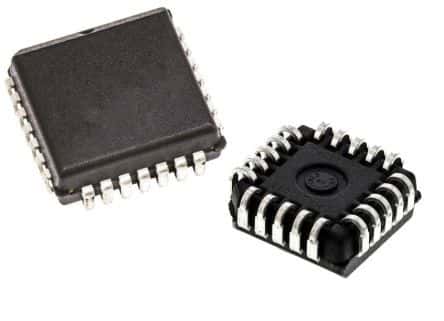

Product Images
