Surface mount voltage converter, SOIC package, featuring inverting logic. Operates with a minimum input voltage of 1.5V and a maximum of 10V, providing a fixed output voltage up to 20V. Offers a maximum output current of 20mA with a 650mV dropout voltage. Operates at a 10kHz frequency across a temperature range of -40°C to 85°C. RoHS compliant.
Frequency10kHz
PackageSOIC
MountingSurface Mount
Quick Jump:
Technical Specifications
Maxim ICL7660ESA+ technical specifications.
General
| Package/Case | SOIC |
| Dropout Voltage | 650mV |
| Frequency | 10kHz |
| Height | 1.5mm |
| Lead Free | Lead Free |
| Length | 5mm |
| Logic Function | Inverting |
| Max Input Voltage | 10V |
| Min Input Voltage | 1.5V |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 20mA |
| Max Output Voltage | 20V |
| Min Output Voltage | 3V |
| Max Supply Voltage | 10V |
| Min Supply Voltage | 1.5V |
| Mount | Surface Mount |
| Number of Outputs | 1 |
| Output Current | 20mA |
| Output Type | Fixed |
| Output Voltage | 20V |
| Package Quantity | 100 |
| Packaging | Rail/Tube |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Synchronous Rectifier | No |
| Topology | Boost, Charge Pump |
| Weight | 0.01787oz |
| Width | 4mm |
Compliance
| RoHS | Compliant |
Datasheet
Maxim ICL7660ESA+ Datasheet
Download the complete datasheet for Maxim ICL7660ESA+ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

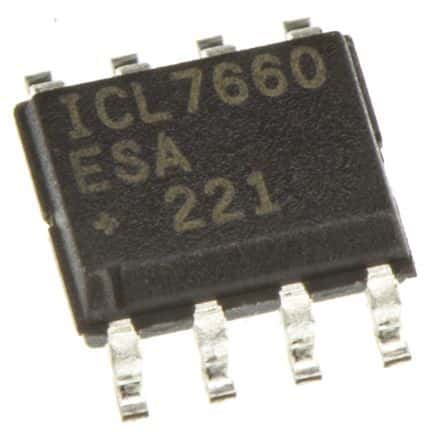

Product Images
