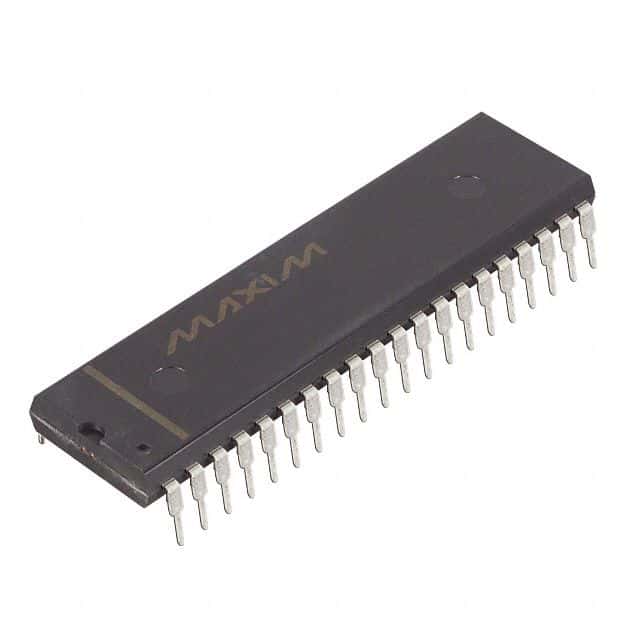

The ICM7211IPL+ is a 28-segment LCD driver from Maxim, packaged in a PDIP format for through-hole mounting. It operates at a maximum frequency of 16kHz and a supply voltage of 6V, with a supply current of 10uA. The device is designed to function within an operating temperature range of -20°C to 85°C. It is RoHS compliant and available in quantities of 10, packaged in rail or tube packaging.
Frequency16kHz
PackagePDIP
MountingThrough Hole
Quick Jump:
Technical Specifications
Maxim ICM7211IPL+ technical specifications.
General
| Package/Case | PDIP |
| Display Type | LCD |
| Max Frequency | 16kHz |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -20°C |
| Mount | Through Hole |
| Number of Segments | 28 |
| Operating Supply Current | 10uA |
| Operating Supply Voltage | 6V |
| Package Quantity | 10 |
| Packaging | Rail/Tube |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
Compliance
| RoHS | Compliant |
Datasheet
Maxim ICM7211IPL+ Datasheet
Download the complete datasheet for Maxim ICM7211IPL+ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
