3.3V Shunt Voltage Reference IC, fixed output, 0.5% tolerance, designed for surface mount applications in an SC package. Features a cathode current of 67µA and a maximum output current of 15mA. Operates across a temperature range of -40°C to 125°C, is lead-free, and RoHS compliant. Supplied in tape and reel packaging.
PackageSC
MountingSurface Mount
Quick Jump:
Technical Specifications
Maxim LM4040CEX3-3.3+T technical specifications.
General
Package/Case
SC
Cathode Current
67uA
Lead Free
Lead Free
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Output Current
15mA
Min Output Voltage
3.3V
Mount
Surface Mount
Number of Channels
1
Output Current
15mA
Output Type
Fixed
Output Voltage
3.3V
Package Quantity
2500
Packaging
Tape and Reel
Radiation Hardening
No
Reach SVHC Compliant
Unknown
Reference Type
Shunt
Reference Voltage
3.3V
RoHS Compliant
Yes
Tolerance
0.5%
Compliance
RoHS
Compliant
Datasheet
Maxim LM4040CEX3-3.3+T Datasheet
Download the complete datasheet for Maxim LM4040CEX3-3.3+T to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

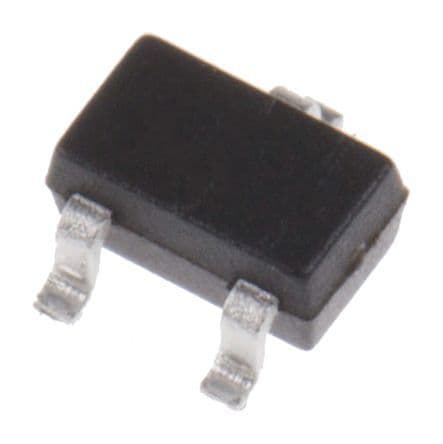

Product Images
