14-bit, 200kS/s SAR Analog-to-Digital Converter (ADC) with a single-ended input. Features SPI serial interface, unipolar operation, and a 5V operating supply voltage. Offers 84dB Signal-to-Noise Ratio (SNR) and is housed in a 10-pin UMAX surface-mount package. Operating temperature range is 0°C to 70°C. RoHS compliant and lead-free.
PackageUMAX
MountingSurface Mount
PolarityUnipolar
Quick Jump:
Technical Specifications
Maxim MAX1062CCUB+ technical specifications.
General
| Package/Case | UMAX |
| Conversion Rate | 200KS/s |
| Input Type | SINGLE-ENDED |
| Interface | SPI, Serial |
| Lead Free | Lead Free |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | 0°C |
| Max Power Dissipation | 444mW |
| Mount | Surface Mount |
| Number of A/D Converters | 1 |
| Number of Analog Inputs | 1 |
| Number of Bits | 14 |
| Number of Channels | 1 |
| Number of Converters | 1 |
| Number of Inputs | 1 |
| Operating Supply Voltage | 5V |
| Package Quantity | 50 |
| Packaging | Rail/Tube |
| Polarity | Unipolar |
| Radiation Hardening | No |
| Resolution | 14b |
| RoHS Compliant | Yes |
| Sampling Rate | 200000S/s |
| Signal to Noise Ratio (SNR) | 84dB |
| Supply Type | Analog, Digital |
Compliance
| RoHS | Compliant |
Datasheet
Maxim MAX1062CCUB+ Datasheet
Download the complete datasheet for Maxim MAX1062CCUB+ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

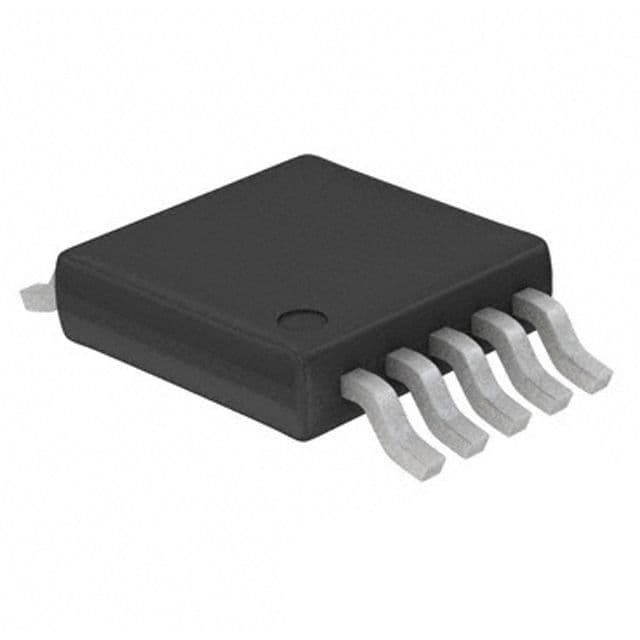

Product Images
