Technical Specifications
Maxim MAX1072ETC+ technical specifications.
General
| Conversion Rate | 1.8MS/s |
| Input Type | DIFFERENTIAL |
| Interface | SPI, Serial |
| Lead Free | Lead Free |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Power Dissipation | 1.349W |
| Mount | Surface Mount |
| Number of A/D Converters | 1 |
| Number of Analog Inputs | 1 |
| Number of Bits | 10 |
| Number of Channels | 1 |
| Number of Converters | 1 |
| Number of Inputs | 1 |
| Operating Supply Voltage | 5.25V |
| Packaging | Rail/Tube |
| Polarity | Unipolar |
| Resolution | 10b |
| RoHS Compliant | Yes |
| Sampling Rate | 1800000S/s |
| Signal to Noise Ratio (SNR) | 60dB |
Compliance
| RoHS | Compliant |
Datasheet
Maxim MAX1072ETC+ Datasheet
Download the complete datasheet for Maxim MAX1072ETC+ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

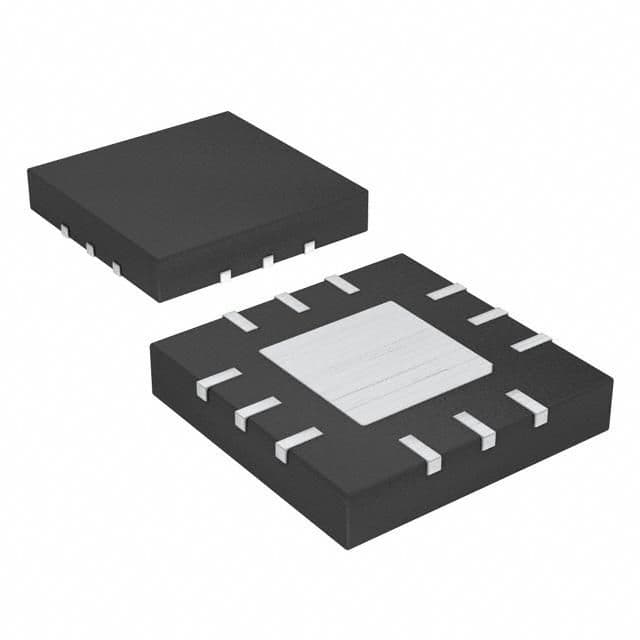

Product Images
