12-bit, 8-channel SAR Analog-to-Digital Converter (ADC) with a sampling rate of 8 kS/s. Features single-ended input, I2C and serial interface, and bipolar/unipolar polarity. Operates from a 4.75V to 5V single supply voltage with a typical supply current of 6mA. Integral nonlinearity is 1 LSB, with a settling time of 7.7µs. Packaged in a 28-pin SSOP for surface mounting.
PackageSSOP
Current6mA
MountingSurface Mount
PolarityBipolar, Unipolar
Quick Jump:
Technical Specifications
Maxim MAX127BCAI+ technical specifications.
General
| Package/Case | SSOP |
| Height | 1.78mm |
| Input Type | SINGLE-ENDED |
| Integral Nonlinearity (INL) | 1LSB |
| Interface | I2C, Serial |
| Lead Free | Lead Free |
| Length | 10.33mm |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | 0°C |
| Max Supply Voltage | 5V |
| Min Supply Voltage | 4.75V |
| Mount | Surface Mount |
| Number of A/D Converters | 1 |
| Number of Analog Inputs | 8 |
| Number of Bits | 12 |
| Number of Channels | 8 |
| Package Quantity | 46 |
| Packaging | Rail/Tube |
| Polarity | Bipolar, Unipolar |
| Reach SVHC Compliant | No |
| Resolution | 12b |
| RoHS Compliant | Yes |
| Sampling Rate | 8KS/s |
| Settling Time | 7.7us |
| Supply Current | 6mA |
| Supply Type | Single |
| Termination | SMD/SMT |
| Weight | 0.080001oz |
| Width | 5.38mm |
Compliance
| RoHS | Compliant |
Datasheet
Maxim MAX127BCAI+ Datasheet
Download the complete datasheet for Maxim MAX127BCAI+ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

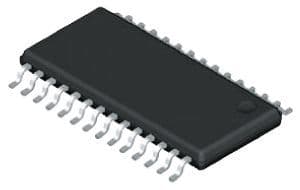

Product Images
