Full-duplex RS-232 transceiver IC supporting 3Mbps data rates. Features two drivers and two receivers within an 8-pin configuration, operating from a 3V to 5.5V supply. This surface-mount component, housed in a 20-TSSOP package, offers 0.15µs propagation delay and 500mV receiver hysteresis. Suitable for applications requiring reliable serial communication across a wide temperature range of -40°C to 85°C.
PackageTSSOP
Current1mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Maxim MAX13235EEUP+T technical specifications.
General
| Package/Case | TSSOP |
| Data Rate | 3Mbps |
| Interface | RS-232 |
| Logic Function | Transceiver, Receiver |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 3V |
| Mount | Surface Mount |
| Number of Drivers | 2 |
| Number of I/Os | 8 |
| Number of Receivers | 2 |
| Number of Transceivers | 1 |
| Number of Transmitters | 2 |
| Package Quantity | 2500 |
| Packaging | Tape and Reel |
| Propagation Delay | 0.15us |
| Receiver Hysteresis | 500mV |
| RoHS Compliant | Yes |
| Simplex/Duplex | Full Duplex |
| Supply Current | 1mA |
Compliance
| RoHS | Compliant |
Datasheet
Maxim MAX13235EEUP+T Datasheet
Download the complete datasheet for Maxim MAX13235EEUP+T to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

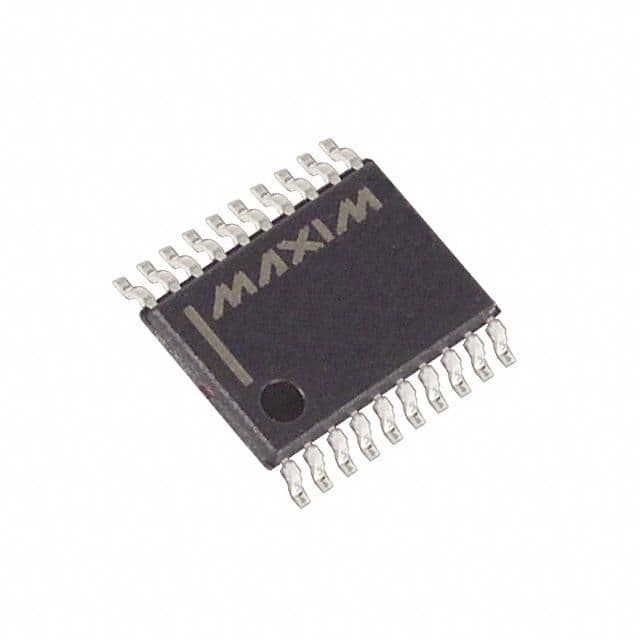

Product Images
