16-bit Analog Front End (AFE) IC featuring a single Analog-to-Digital Converter (ADC) and dual Digital-to-Analog Converters (DACs). Offers 2 channels with a maximum sampling rate of 21940S/s for the ADC and a conversion rate of 512S/s. Communicates via SPI interface and operates within a 1.8V to 3.6V supply voltage range. Packaged in a QFN (TQFN EP) for surface mount technology (SMT) termination, this RoHS compliant component has a maximum operating temperature of 85°C.
PackageQFN
Current1.36mA
Quick Jump:
Technical Specifications
Maxim MAX1358BETL+ technical specifications.
General
| Package/Case | QFN |
| Conversion Rate | 512S/s |
| Converter Type | ADC |
| Interface | SPI |
| Lead Free | Lead Free |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 3.6V |
| Min Supply Voltage | 1.8V |
| Number of A/D Converters | 1 |
| Number of Bits | 16 |
| Number of Channels | 2 |
| Number of D/A Converters | 2 |
| Output Type | Digital |
| Package Quantity | 50 |
| Packaging | Rail/Tube |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| Resolution | 16b |
| RoHS Compliant | Yes |
| Sampling Rate | 21940S/s |
| Series | MAX1358B |
| Supply Current | 1.36mA |
| Supply Type | Analog, Digital |
| Termination | SMD/SMT |
Compliance
| RoHS | Compliant |
Datasheet
Maxim MAX1358BETL+ Datasheet
Download the complete datasheet for Maxim MAX1358BETL+ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

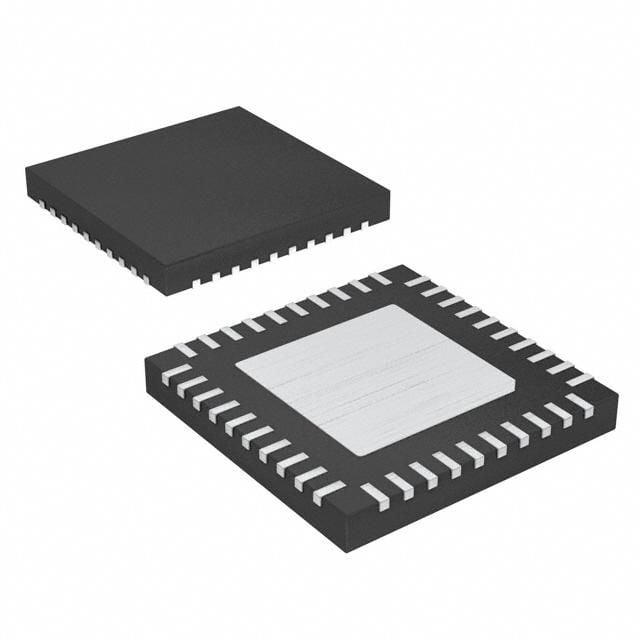

Product Images
