15-bit, 16S/s multi-slope analog-to-digital converter (ADC) with a single differential analog input. This integrated circuit features a parallel interface and bipolar polarity, operating from a 4.5V to 5.5V supply voltage. Packaged in a 28-pin PDIP for through-hole mounting, it offers a maximum power dissipation of 786mW and operates within a temperature range of 0°C to 70°C. RoHS compliant and lead-free.
PackagePDIP
MountingThrough Hole
PolarityBipolar
Quick Jump:
Technical Specifications
Maxim MAX135CPI+ technical specifications.
General
| Package/Case | PDIP |
| Input Type | DIFFERENTIAL |
| Interface | Parallel |
| Lead Free | Lead Free |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | 0°C |
| Max Power Dissipation | 786mW |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 4.5V |
| Mount | Through Hole |
| Number of A/D Converters | 1 |
| Number of Analog Inputs | 1 |
| Number of Bits | 15 |
| Number of Channels | 1 |
| Number of Converters | 1 |
| Number of Inputs | 1 |
| Operating Supply Voltage | 5V |
| Packaging | Rail/Tube |
| Polarity | Bipolar |
| Power Supply | 5V |
| Reach SVHC Compliant | Unknown |
| Resolution | 15b |
| RoHS Compliant | Yes |
| Sampling Rate | 16S/s |
Compliance
| RoHS | Compliant |
Datasheet
Maxim MAX135CPI+ Datasheet
Download the complete datasheet for Maxim MAX135CPI+ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

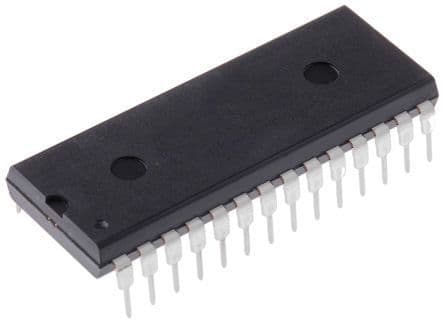

Product Images
