10-bit, 80MS/s Analog-to-Digital Converter (ADC) with a single-ended input and bipolar polarity. Features a 2.2LSB Integral Nonlinearity (INL) and 1LSB Differential Nonlinearity (DNL). Operates with a single supply and offers a parallel interface. Packaged in a 32-TQFP for surface mounting, this RoHS compliant component is suitable for operation between -40°C and 85°C.
PackageTQFP
MountingSurface Mount
PolarityBipolar
Quick Jump:
Technical Specifications
Maxim MAX1448EHJ+ technical specifications.
General
| Package/Case | TQFP |
| Differential Nonlinearity | 1LSB |
| Input Type | DIFFERENTIAL |
| Integral Nonlinearity (INL) | 2.2LSB |
| Interface | Parallel |
| Lead Free | Lead Free |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Power Dissipation | 1.4953W |
| Mount | Surface Mount |
| Number of A/D Converters | 1 |
| Number of Analog Inputs | 1 |
| Number of Bits | 10 |
| Number of Channels | 1 |
| Number of Converters | 1 |
| Package Quantity | 360 |
| Packaging | Tray |
| Polarity | Bipolar |
| Radiation Hardening | No |
| Resolution | 10b |
| RoHS Compliant | Yes |
| Sampling Rate | 80MS/s |
| Series | MAX1448 |
| Signal to Noise Ratio (SNR) | 59dB |
| Supply Type | Single |
Compliance
| RoHS | Compliant |
Datasheet
Maxim MAX1448EHJ+ Datasheet
Download the complete datasheet for Maxim MAX1448EHJ+ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

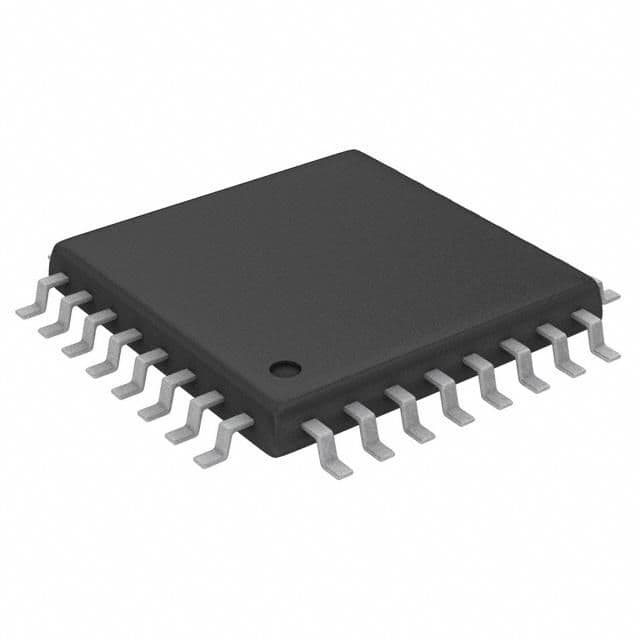

Product Images
