RS-232 bus transceiver, surface mount SOIC package, featuring 4 drivers and 4 receivers. Operates with a 4.5V to 5.5V supply voltage, consuming 600uA typical supply current. Supports data rates up to 120Kbps with a 4us propagation delay. Designed for 0°C to 70°C operating temperature range.
PackageSOIC
Current600uA
Current Rating60A
MountingSurface Mount
Quick Jump:
Technical Specifications
Maxim MAX1489ECSD+ technical specifications.
General
| Package/Case | SOIC |
| Current Rating | 60A |
| Data Rate | 120Kbps |
| Height | 1.5mm |
| Interface | RS-232 |
| Lead Free | Lead Free |
| Length | 8.75mm |
| Logic Function | Receiver |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | 0°C |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 4.5V |
| Mount | Surface Mount |
| Number of I/Os | 8 |
| Number of Receivers | 4 |
| Operating Supply Voltage | 5V |
| Package Quantity | 50 |
| Packaging | Rail/Tube |
| Propagation Delay | 4us |
| Reach SVHC Compliant | No |
| Receiver Hysteresis | 1.11V |
| RoHS Compliant | Yes |
| Supply Current | 600uA |
| Width | 4mm |
Compliance
| RoHS | Compliant |
Datasheet
Maxim MAX1489ECSD+ Datasheet
Download the complete datasheet for Maxim MAX1489ECSD+ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

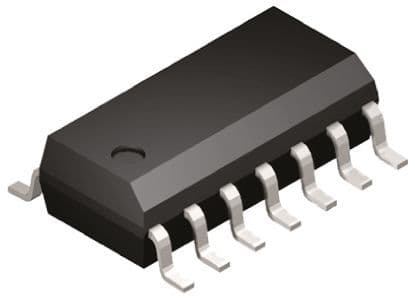

Product Images
