The MAX1582ETC+ is a dual-output boost IC from Maxim, operating at a frequency of 1.25MHz. It is designed to handle a maximum power dissipation of 1.349W and can be used with an operating supply voltage of up to 5.5V. The IC is RoHS compliant and suitable for surface mount applications. It can operate within a temperature range of -40°C to 85°C.
Frequency1.25MHz
MountingSurface Mount
Power1.349W
Quick Jump:
Technical Specifications
Maxim MAX1582ETC+ technical specifications.
General
| Frequency | 1.25MHz |
| Lead Free | Lead Free |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Power Dissipation | 1.349W |
| Mount | Surface Mount |
| Number of Outputs | 2 |
| Number of Segments | 6 |
| Operating Supply Voltage | 5.5V |
| Output Voltage | 25.5V |
| Package Quantity | 75 |
| Packaging | Rail/Tube |
| Power Dissipation | 1.349W |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Topology | Boost |
Compliance
| RoHS | Compliant |
Datasheet
Maxim MAX1582ETC+ Datasheet
Download the complete datasheet for Maxim MAX1582ETC+ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

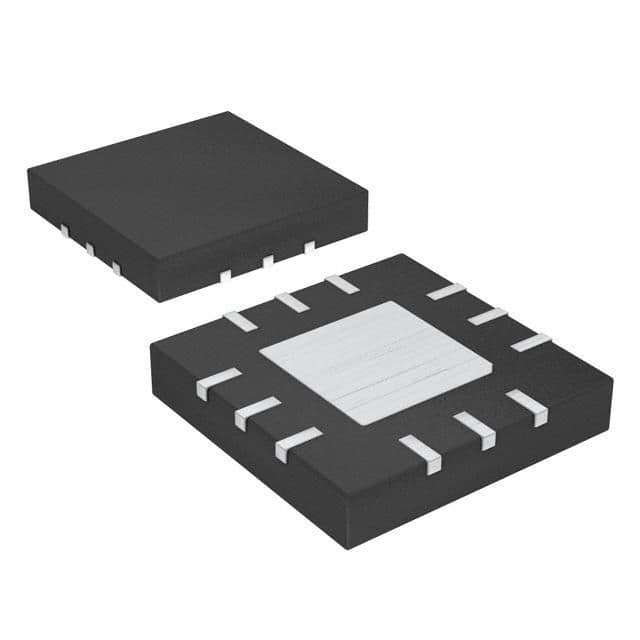

Product Images
