Boost switching regulator, voltage-mode control, operating at 500kHz. Features a 1.5A internal switch, delivering up to 420mA output current. Offers adjustable or fixed output voltage from 2V to 5.5V, with a maximum output voltage of 5.5V. Achieves up to 90% efficiency and operates from a 700mV to 5.5V input voltage range. Packaged in a 10-pin UMAX surface-mount package with dimensions of 3.05mm x 3.05mm x 0.95mm. RoHS compliant and lead-free.
Frequency500kHz
PackageUMAX
MountingSurface Mount
Quick Jump:
Technical Specifications
Maxim MAX1676EUB+ technical specifications.
General
| Package/Case | UMAX |
| Efficiency | 90% |
| Frequency | 500kHz |
| Height | 0.95mm |
| Lead Free | Lead Free |
| Length | 3.05mm |
| Max Input Voltage | 5.5V |
| Min Input Voltage | 700mV |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 420mA |
| Max Output Voltage | 5.5V |
| Min Output Voltage | 2V |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 700mV |
| Mount | Surface Mount |
| Number of Outputs | 1 |
| Output Configuration | Positive |
| Output Current | 750mA |
| Output Type | Adjustable (Programmable), Fixed, Adjustable |
| Output Voltage | 5V |
| Package Quantity | 50 |
| Packaging | Rail/Tube |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Synchronous Rectifier | Yes |
| Topology | Boost |
| Width | 3.05mm |
Compliance
| RoHS | Compliant |
Datasheet
Maxim MAX1676EUB+ Datasheet
Download the complete datasheet for Maxim MAX1676EUB+ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

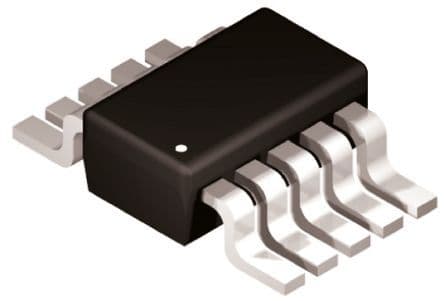

Product Images
