High-efficiency 1A DC-DC buck controller with adjustable or fixed 3.3V output, operating from 2.7V to 14V input. Features 96% efficiency and a 340kHz switching frequency. This surface-mount integrated circuit offers a positive output configuration and is RoHS compliant. Packaged in a 16-pin QSOP with dimensions of 4.98mm x 3.99mm x 1.55mm.
Frequency340kHz
PackageQSOP
MountingSurface Mount
Quick Jump:
Technical Specifications
Maxim MAX1684EEE+ technical specifications.
General
| Package/Case | QSOP |
| Efficiency | 96% |
| Frequency | 340kHz |
| Height | 1.55mm |
| Lead Free | Lead Free |
| Length | 4.98mm |
| Max Input Voltage | 14V |
| Min Input Voltage | 2.7V |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 1A |
| Max Output Voltage | 14V |
| Min Output Voltage | 1.25V |
| Max Supply Voltage | 14V |
| Min Supply Voltage | 2.7V |
| Mount | Surface Mount |
| Nominal Output Voltage | 3.3V |
| Number of Outputs | 1 |
| Output Configuration | Positive |
| Output Current | 1A |
| Output Type | Fixed, Adjustable |
| Output Voltage | 14V |
| Package Quantity | 100 |
| Packaging | Rail/Tube |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Synchronous Rectifier | Yes |
| Termination | SMD/SMT |
| Width | 3.99mm |
Compliance
| RoHS | Compliant |
Datasheet
Maxim MAX1684EEE+ Datasheet
Download the complete datasheet for Maxim MAX1684EEE+ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

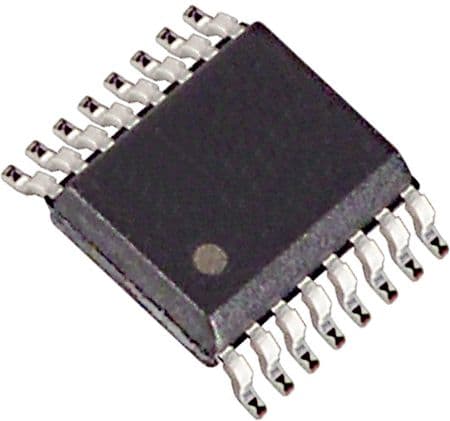

Product Images
