Adjustable positive output buck regulator IC, featuring a 1A maximum output current and a 2.6V to 5.5V input voltage range. This surface mount component offers an adjustable output voltage from 1.5V to 5.5V, with a maximum operating temperature of 85°C. The device is housed in a 10-pin UMAX package measuring 3mm x 3.05mm x 0.95mm and is RoHS compliant.
PackageUMAX
MountingSurface Mount
Quick Jump:
Technical Specifications
Maxim MAX1974EUB+ technical specifications.
General
| Package/Case | UMAX |
| Height | 0.95mm |
| Lead Free | Lead Free |
| Length | 3mm |
| Max Input Voltage | 5.5V |
| Min Input Voltage | 2.6V |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 1A |
| Max Output Voltage | 5.5V |
| Min Output Voltage | 1.5V |
| Mount | Surface Mount |
| Number of Outputs | 1 |
| Operating Supply Voltage | 5.5V |
| Output Configuration | Positive |
| Output Current | 1A |
| Output Type | Adjustable (Programmable), Adjustable |
| Output Voltage | 1V |
| Package Quantity | 50 |
| Packaging | Rail/Tube |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Series | MAX1974 |
| Synchronous Rectifier | Yes |
| Width | 3.05mm |
Compliance
| RoHS | Compliant |
Datasheet
Maxim MAX1974EUB+ Datasheet
Download the complete datasheet for Maxim MAX1974EUB+ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

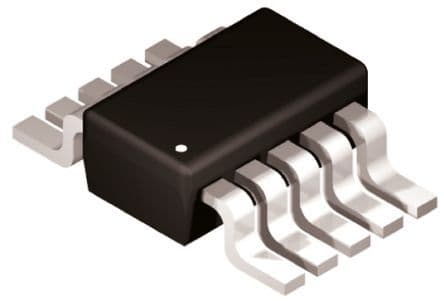

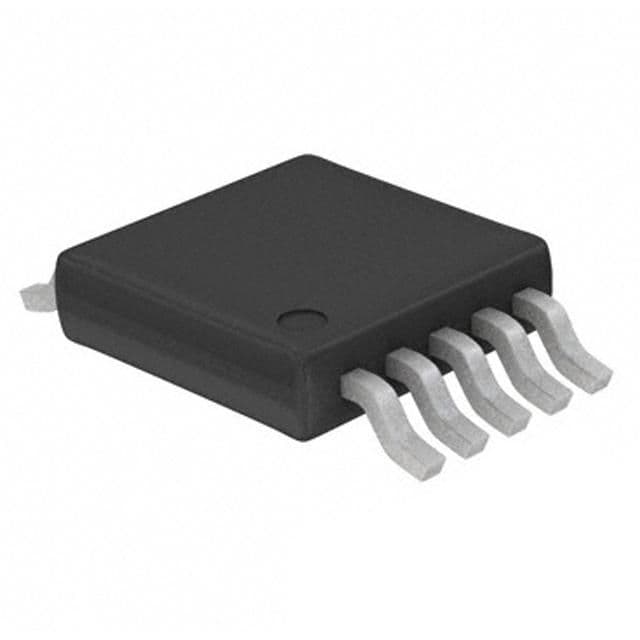

Product Images
