Full-duplex RS-232 transceiver, surface mountable in a SOIC package. Features 2 drivers and 2 receivers, operating at a 200Kbps data rate with a 5V supply voltage. Supports a supply voltage range of 4.5V to 5.5V and offers a 1µs propagation delay. This RoHS compliant component operates within a temperature range of -40°C to 85°C.
PackageSOIC
Voltage5V
MountingSurface Mount
Quick Jump:
Technical Specifications
Maxim MAX232AESE+ technical specifications.
General
Package/Case
SOIC
Data Rate
200Kbps
Height
1.5mm
Interface
RS-232
Lead Free
Lead Free
Length
10mm
Logic Function
Transceiver, Receiver
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage
5.5V
Min Supply Voltage
4.5V
Mount
Surface Mount
Number of Drivers
2
Number of Receivers
2
Number of Transceivers
1
Number of Transmitters
2
Operating Supply Current
10mA
Operating Supply Voltage
5V
Packaging
Rail/Tube
Propagation Delay
1us
Reach SVHC Compliant
No
Receiver Hysteresis
500mV
RoHS Compliant
Yes
Simplex/Duplex
Full Duplex
Voltage
5V
Width
4mm
Compliance
RoHS
Compliant
Datasheet
Maxim MAX232AESE+ Datasheet
Download the complete datasheet for Maxim MAX232AESE+ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

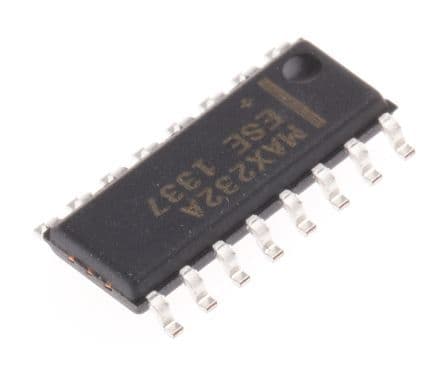

Product Images
