Full-duplex RS-232 transceiver IC featuring two drivers and two receivers, operating at a 120Kbps data rate. This through-hole component supports a 5V operating supply voltage (4.5V to 5.5V range) and is housed in a 16-pin PDIP package. Key specifications include a 10µs propagation delay, 500mV receiver hysteresis, and a maximum supply current of 10mA. The device operates within a temperature range of 0°C to 70°C and is RoHS compliant.
PackagePDIP
Voltage6V
Current10mA
MountingThrough Hole
Quick Jump:
Technical Specifications
Maxim MAX232ECPE+ technical specifications.
General
Package/Case
PDIP
Data Rate
120Kbps
Height
4.45mm
Interface
RS-232
Lead Free
Lead Free
Length
19.43mm
Logic Function
Transceiver, Receiver
Max Operating Temperature
70°C
Min Operating Temperature
0°C
Max Supply Voltage
5.5V
Min Supply Voltage
4.5V
Mount
Through Hole
Number of Channels
2
Number of Drivers
2
Number of I/Os
8
Number of Receivers
2
Number of Transceivers
1
Number of Transmitters
2
Operating Supply Voltage
5V
Package Quantity
25
Packaging
Rail/Tube
Propagation Delay
10us
Reach SVHC Compliant
No
Receiver Hysteresis
500mV
RoHS Compliant
Yes
Simplex/Duplex
Full Duplex
Supply Current
10mA
Voltage
6V
Width
7.87mm
Compliance
RoHS
Compliant
Datasheet
Maxim MAX232ECPE+ Datasheet
Download the complete datasheet for Maxim MAX232ECPE+ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

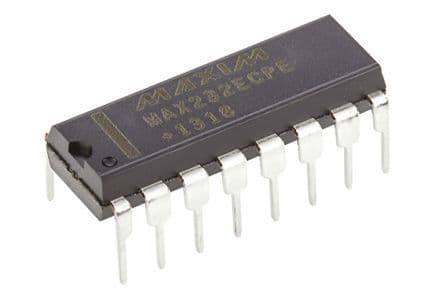

Product Images
