Full-duplex RS-232 transceiver, featuring 2 drivers and 2 receivers, operates with a 4.5V to 5.5V supply voltage. This surface-mount SOIC-16 packaged logic IC supports a 120Kbps data rate and offers 8 I/Os. It includes receiver hysteresis of 500mV and a propagation delay of 10µs, with a maximum operating temperature of 70°C.
PackageSOIC
Current10mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Maxim MAX232ECWE+ technical specifications.
General
Package/Case
SOIC
Data Rate
120Kbps
Height
2.35mm
Interface
RS-232
Lead Free
Lead Free
Length
10.5mm
Logic Function
Transceiver, Receiver
Max Operating Temperature
70°C
Min Operating Temperature
0°C
Max Supply Voltage
5.5V
Min Supply Voltage
4.5V
Mount
Surface Mount
Number of Drivers
2
Number of I/Os
8
Number of Receivers
2
Number of Transceivers
1
Number of Transmitters
2
Operating Supply Voltage
5V
Package Quantity
46
Packaging
Rail/Tube
Propagation Delay
10us
Reach SVHC Compliant
No
Receiver Hysteresis
500mV
RoHS Compliant
Yes
Simplex/Duplex
Full Duplex
Supply Current
10mA
Width
7.6mm
Compliance
RoHS
Compliant
Datasheet
Maxim MAX232ECWE+ Datasheet
Download the complete datasheet for Maxim MAX232ECWE+ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

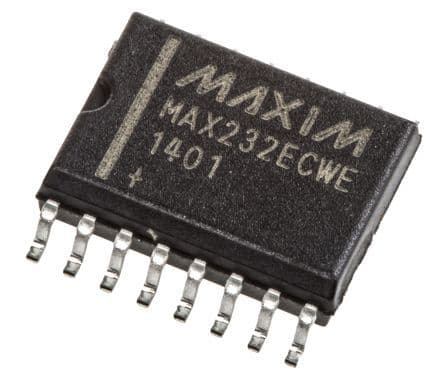

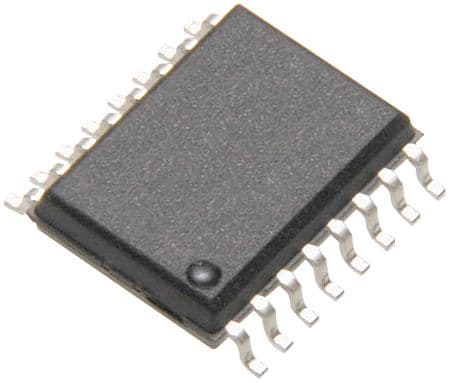

Product Images
