Full duplex RS232 transceiver IC, featuring 2 drivers and 2 receivers for robust serial communication. Operates at 5V with a 120Kbps data rate and 10mA supply current. This surface mount SOIC package offers ESD protection, 500mV receiver hysteresis, and a propagation delay of 10µs. Designed for a wide operating temperature range of -40°C to 85°C, this RoHS compliant component is ideal for various logic applications.
PackageSOIC
Current10mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Maxim MAX232EESE+ technical specifications.
General
Package/Case
SOIC
Data Rate
120Kbps
Height
1.5mm
Lead Free
Lead Free
Length
10mm
Logic Function
Transceiver, Receiver
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Mount
Surface Mount
Number of Drivers
2
Number of I/Os
8
Number of Receivers
2
Number of Transceivers
1
Number of Transmitters
2
Operating Supply Voltage
5V
Package Quantity
50
Packaging
Rail/Tube
Propagation Delay
10us
Receiver Hysteresis
500mV
RoHS Compliant
Yes
Simplex/Duplex
Full Duplex
Supply Current
10mA
Turn-On Delay Time
1us
Width
4mm
Compliance
RoHS
Compliant
Datasheet
Maxim MAX232EESE+ Datasheet
Download the complete datasheet for Maxim MAX232EESE+ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

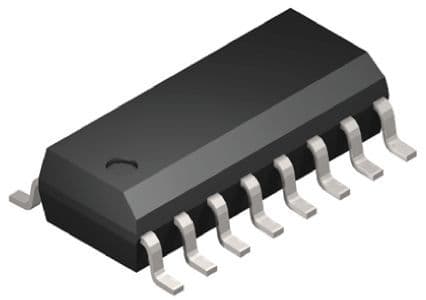

Product Images
