Technical Specifications
Maxim MAX3002ETP+T technical specifications.
General
Channel Type
Bidirectional
Data Rate
35Mbps
High Level Output Current
-20uA
Logic Function
Translator
Low Level Output Current
20uA
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage
5.5V
Min Supply Voltage
1.65V
Mount
Surface Mount
Number of Circuits
1
Output Type
3-STATE
Package Quantity
2500
Packaging
Tape and Reel
Propagation Delay
20ns
Quiescent Current
10uA
RoHS Compliant
Yes
Compliance
RoHS
Compliant
Datasheet
Maxim MAX3002ETP+T Datasheet
Download the complete datasheet for Maxim MAX3002ETP+T to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

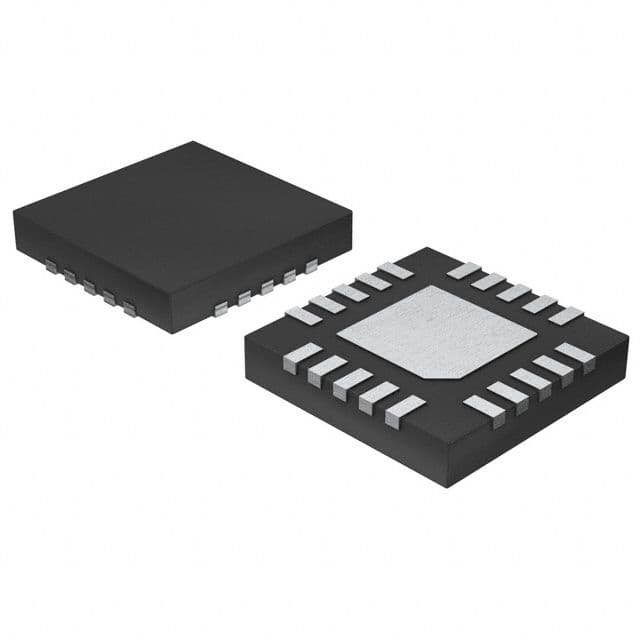

Product Images
