8-channel logic translator IC, surface mount, featuring 3-state outputs and 15kV ESD protection. Operates with supply voltages from 1.65V to 5.5V, supporting data rates up to 35Mbps with a propagation delay of 8.5ns. This TSSOP package component offers a low operating supply current of 10uA and is RoHS compliant.
PackageTSSOP
MountingSurface Mount
Quick Jump:
Technical Specifications
Maxim MAX3002EUP+ technical specifications.
General
| Package/Case | TSSOP |
| Data Rate | 35Mbps |
| Height | 0.95mm |
| High Level Output Current | -20uA |
| Lead Free | Lead Free |
| Length | 6.6mm |
| Logic Function | Translator |
| Low Level Output Current | 20uA |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Power Dissipation | 559mW |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 1.65V |
| Mount | Surface Mount |
| Number of Bits | 8 |
| Number of Channels | 8 |
| Number of Inputs | 8 |
| Operating Supply Current | 10uA |
| Output Current | 20uA |
| Output Type | 3-STATE |
| Package Quantity | 74 |
| Packaging | Rail/Tube |
| Propagation Delay | 8.5ns |
| Quiescent Current | 10uA |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Turn-On Delay Time | 20ns |
| Weight | 0.006737oz |
| Width | 4.5mm |
Compliance
| RoHS | Compliant |
Datasheet
Maxim MAX3002EUP+ Datasheet
Download the complete datasheet for Maxim MAX3002EUP+ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

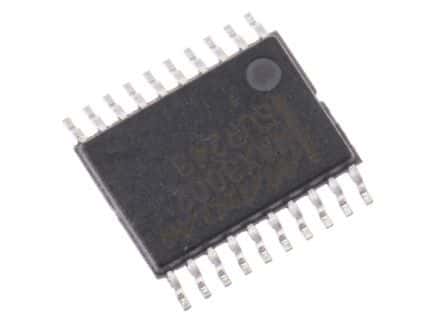

Product Images
