Full-duplex transceiver IC for RS-422 and RS-485 interfaces, featuring a 10Mbps data rate. This surface-mount component operates within a 4.75V to 5.25V supply voltage range and supports a single driver and receiver. Packaged in an 8-pin SOIC with dimensions of 5mm (L) x 4mm (W) x 1.5mm (H), it offers a maximum power dissipation of 471mW and an output voltage of 13V. RoHS compliant with a maximum operating temperature of 70°C.
PackageSOIC
Current1mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Maxim MAX3087CSA+ technical specifications.
General
| Package/Case | SOIC |
| Data Rate | 10Mbps |
| Height | 1.5mm |
| Interface | RS-422, RS-485 |
| Lead Free | Lead Free |
| Length | 5mm |
| Logic Function | Transceiver |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | 0°C |
| Max Power Dissipation | 471mW |
| Max Supply Voltage | 5.25V |
| Min Supply Voltage | 4.75V |
| Mount | Surface Mount |
| Number of Drivers | 1 |
| Number of Receivers | 1 |
| Number of Transceivers | 1 |
| Number of Transmitters | 1 |
| Output Voltage | 13V |
| Package Quantity | 100 |
| Packaging | Rail/Tube |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Simplex/Duplex | Full Duplex |
| Supply Current | 1mA |
| Width | 4mm |
Compliance
| RoHS | Compliant |
Datasheet
Maxim MAX3087CSA+ Datasheet
Download the complete datasheet for Maxim MAX3087CSA+ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

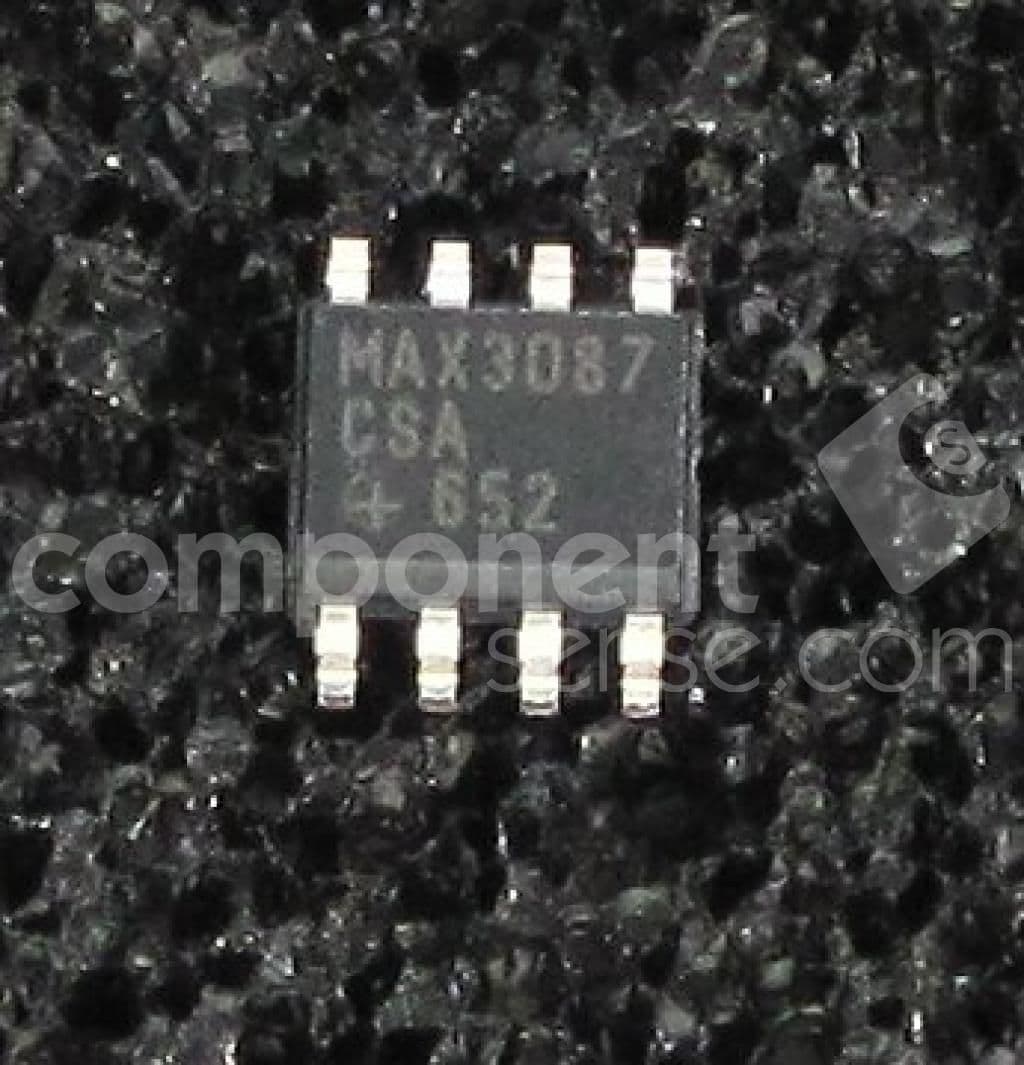

Product Images
