Surface mount RS-485 receiver IC, operating at 10Mbps with a 4.75V to 5.25V supply range. Features four receivers with 45mV hysteresis, supporting RS-422 and RS-485 interfaces. Packaged in a 16-pin SOIC with dimensions of 10mm length, 4mm width, and 1.5mm height. RoHS compliant with a maximum power dissipation of 696mW and an operating temperature range of 0°C to 70°C.
PackageSOIC
Current2.4mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Maxim MAX3096CSE+ technical specifications.
General
| Package/Case | SOIC |
| Data Rate | 10Mbps |
| Height | 1.5mm |
| Interface | RS-422, RS-485 |
| Lead Free | Lead Free |
| Length | 10mm |
| Logic Function | Receiver |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | 0°C |
| Max Power Dissipation | 696mW |
| Max Supply Voltage | 5.25V |
| Min Supply Voltage | 4.75V |
| Mount | Surface Mount |
| Number of Receivers | 4 |
| Operating Supply Current | 3.5mA |
| Package Quantity | 50 |
| Packaging | Rail/Tube |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| Receiver Hysteresis | 45mV |
| RoHS Compliant | Yes |
| Supply Current | 2.4mA |
| Width | 4mm |
Compliance
| RoHS | Compliant |
Datasheet
Maxim MAX3096CSE+ Datasheet
Download the complete datasheet for Maxim MAX3096CSE+ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

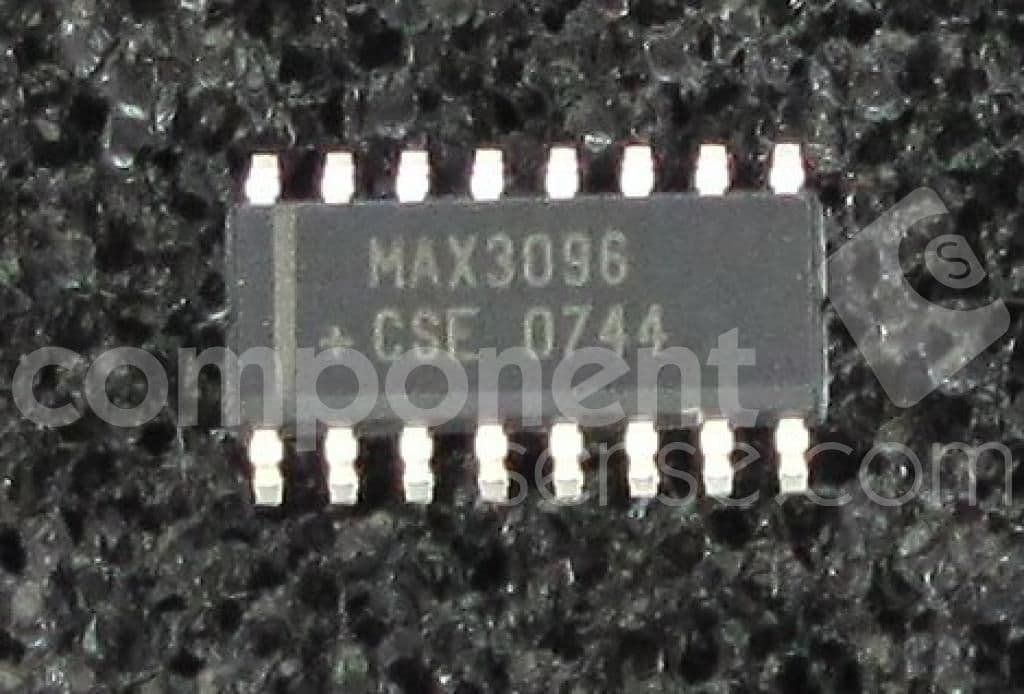

Product Images
