Quad RS-422/RS-485 receiver IC, operating from 3V to 3.6V with a typical 3.3V supply. Features a 10Mbps data rate and 113ns propagation delay. This surface-mount component offers 4 receivers with 45mV hysteresis and SMD/SMT termination. Housed in a QSOP package, it operates across a -40°C to 85°C temperature range and is RoHS compliant.
PackageQSOP
Current2.4mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Maxim MAX3096EEE+ technical specifications.
General
| Package/Case | QSOP |
| Data Rate | 10Mbps |
| Height | 1.651mm |
| Interface | RS-422, RS-485 |
| Lead Free | Lead Free |
| Length | 4.98mm |
| Logic Function | Receiver |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Power Dissipation | 667mW |
| Max Supply Voltage | 3.6V |
| Min Supply Voltage | 3V |
| Mount | Surface Mount |
| Number of Receivers | 4 |
| Operating Supply Current | 3.5mA |
| Operating Supply Voltage | 3.3V |
| Packaging | Rail/Tube |
| Propagation Delay | 113ns |
| Reach SVHC Compliant | Unknown |
| Receiver Hysteresis | 45mV |
| RoHS Compliant | Yes |
| Supply Current | 2.4mA |
| Termination | SMD/SMT |
| Weight | 0.010159oz |
| Width | 3.99mm |
Compliance
| RoHS | Compliant |
Datasheet
Maxim MAX3096EEE+ Datasheet
Download the complete datasheet for Maxim MAX3096EEE+ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

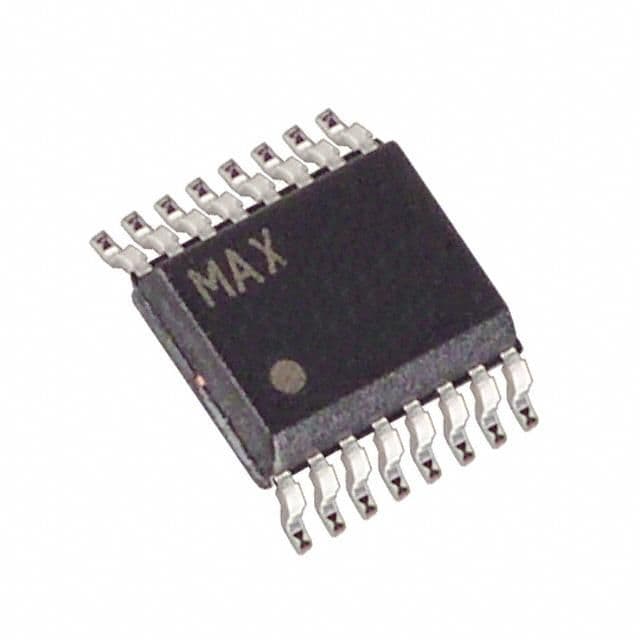

Product Images
