Full-duplex RS-232 transceiver, ideal for interface applications. Features a 235Kbps data rate and operates from a 3V to 5.5V supply. This surface mount component, housed in an SSOP package, offers one driver and one receiver with 300mV receiver hysteresis. It boasts a propagation delay of 0.3us and a maximum operating temperature of 70°C, with lead-free and RoHS compliant construction.
PackageSSOP
MountingSurface Mount
Quick Jump:
Technical Specifications
Maxim MAX3221CAE+ technical specifications.
General
Package/Case
SSOP
Data Rate
235Kbps
Height
1.78mm
Interface
RS-232
Lead Free
Lead Free
Length
6.33mm
Logic Function
Transceiver, Receiver
Max Operating Temperature
70°C
Min Operating Temperature
0°C
Max Supply Voltage
5.5V
Min Supply Voltage
3V
Mount
Surface Mount
Number of Drivers
1
Number of Receivers
1
Number of Transceivers
1
Number of Transmitters
1
Operating Supply Current
1mA
Package Quantity
76
Packaging
Rail/Tube
Propagation Delay
0.3us
Receiver Hysteresis
300mV
RoHS Compliant
Yes
Simplex/Duplex
Full Duplex
Weight
0.004586oz
Width
5.38mm
Compliance
RoHS
Compliant
Datasheet
Maxim MAX3221CAE+ Datasheet
Download the complete datasheet for Maxim MAX3221CAE+ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

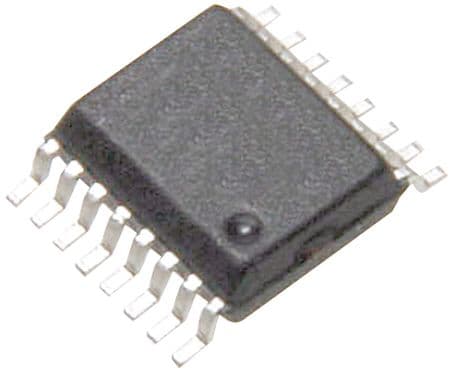

Product Images
