Surface mount transceiver IC featuring RS-232 interface, supporting 2 drivers and 2 receivers. Operates with a supply voltage range of 3V to 5.5V and offers a data rate of 235Kbps. This component is RoHS compliant, lead-free, and housed in a 2.35mm height, 7.6mm width, 11.75mm length SOIC package. It functions as a full transceiver with a propagation delay of 0.3us and a supply current of 1mA, suitable for operation between -40°C and 85°C.
PackageSOIC
Current1mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Maxim MAX3222EWN+ technical specifications.
General
| Package/Case | SOIC |
| Data Rate | 235Kbps |
| Height | 2.35mm |
| Interface | RS-232 |
| Lead Free | Lead Free |
| Length | 11.75mm |
| Logic Function | Transceiver, Receiver |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 3V |
| Mount | Surface Mount |
| Number of Drivers | 2 |
| Number of I/Os | 8 |
| Number of Receivers | 2 |
| Number of Transceivers | 1 |
| Number of Transmitters | 2 |
| Package Quantity | 40 |
| Packaging | Rail/Tube |
| Propagation Delay | 0.3us |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Supply Current | 1mA |
| Width | 7.6mm |
Compliance
| RoHS | Compliant |
Datasheet
Maxim MAX3222EWN+ Datasheet
Download the complete datasheet for Maxim MAX3222EWN+ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

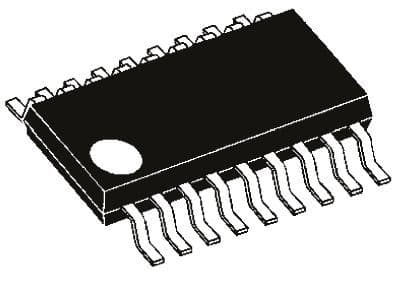

Product Images
