Technical Specifications
Maxim MAX3223ECPP+ technical specifications.
General
Package/Case
PDIP
Data Rate
250Kbps
Interface
RS-232
Logic Function
Transceiver, Receiver
Max Operating Temperature
70°C
Min Operating Temperature
0°C
Max Supply Voltage
5.5V
Min Supply Voltage
3V
Mount
Through Hole
Number of Drivers
2
Number of I/Os
8
Number of Receivers
2
Number of Transceivers
1
Number of Transmitters
2
Package Quantity
18
Packaging
Rail/Tube
Propagation Delay
0.15us
Radiation Hardening
No
Reach SVHC Compliant
Unknown
Receiver Hysteresis
500mV
RoHS Compliant
Yes
Simplex/Duplex
Full Duplex
Supply Current
1mA
Compliance
RoHS
Compliant
Datasheet
Maxim MAX3223ECPP+ Datasheet
Download the complete datasheet for Maxim MAX3223ECPP+ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

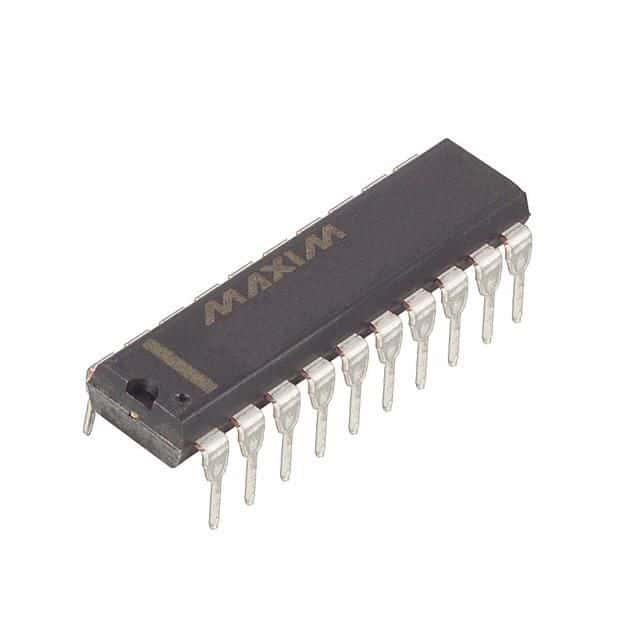

Product Images
