Full-duplex RS-232 transceiver IC, operating at 250Kbps data rates. Features one driver and one receiver, supporting a 3V to 5.5V supply voltage range. Surface mountable in a 16-SSOP package with dimensions of 6.33mm (L) x 5.38mm (W) x 1.78mm (H). Offers 500mV receiver hysteresis and a 0.15µs propagation delay. RoHS compliant with a 1mA supply current.
PackageSSOP
Current1mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Maxim MAX3226EEAE+ technical specifications.
General
| Package/Case | SSOP |
| Data Rate | 250Kbps |
| Height | 1.78mm |
| Interface | RS-232 |
| Lead Free | Lead Free |
| Length | 6.33mm |
| Logic Function | Transceiver, Receiver |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 3V |
| Mount | Surface Mount |
| Number of Drivers | 1 |
| Number of I/Os | 4 |
| Number of Receivers | 1 |
| Number of Transceivers | 1 |
| Number of Transmitters | 1 |
| Package Quantity | 76 |
| Packaging | Rail/Tube |
| Propagation Delay | 0.15us |
| Reach SVHC Compliant | No |
| Receiver Hysteresis | 500mV |
| RoHS Compliant | Yes |
| Simplex/Duplex | Full Duplex |
| Supply Current | 1mA |
| Width | 5.38mm |
Compliance
| RoHS | Compliant |
Datasheet
Maxim MAX3226EEAE+ Datasheet
Download the complete datasheet for Maxim MAX3226EEAE+ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

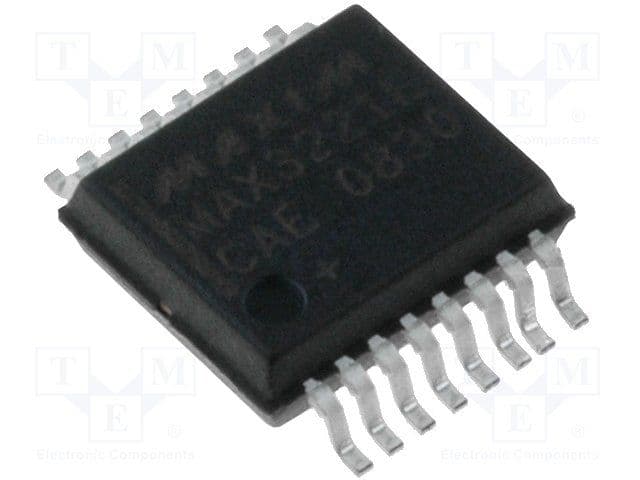

Product Images
