Full-duplex RS-232 transceiver IC, supporting 120Kbps data rates. Features 3 drivers and 5 receivers, with a single transceiver configuration. Operates from 3V to 5.5V supply voltage, consuming 1mA typical current. Packaged in a 28-pin SSOP with surface mount capability. RoHS compliant and lead-free, with a propagation delay of 0.3µs.
PackageSSOP
MountingSurface Mount
Quick Jump:
Technical Specifications
Maxim MAX3243EAI+ technical specifications.
General
Package/Case
SSOP
Data Rate
120Kbps
Height
1.78mm
Interface
RS-232
Lead Free
Lead Free
Length
10.33mm
Logic Function
Transceiver, Receiver
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage
5.5V
Min Supply Voltage
3V
Mount
Surface Mount
Number of Drivers
3
Number of Receivers
5
Number of Transceivers
1
Number of Transmitters
3
Operating Supply Current
1mA
Operating Supply Voltage
5V
Package Quantity
46
Packaging
Rail/Tube
Propagation Delay
0.3us
Radiation Hardening
No
Reach SVHC Compliant
No
Receiver Hysteresis
300mV
RoHS Compliant
Yes
Simplex/Duplex
Full Duplex
Weight
0.080001oz
Width
5.38mm
Compliance
RoHS
Compliant
Datasheet
Maxim MAX3243EAI+ Datasheet
Download the complete datasheet for Maxim MAX3243EAI+ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

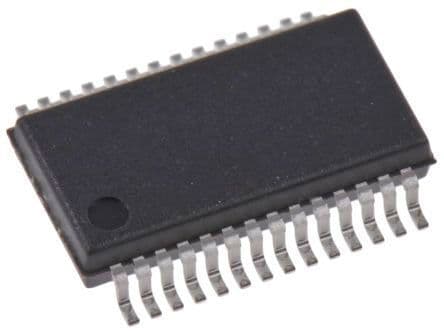

Product Images
