Full duplex RS-232 transceiver, operating at 250Kbps, features 2 drivers and 2 receivers. This surface mount IC, housed in a 28-SSOP package (10.33mm L x 5.38mm W x 1.78mm H), supports a supply voltage range of 3V to 5.5V. With a propagation delay of 0.4us and an operating current of 35mA, it is RoHS compliant and operates from -40°C to 85°C.
PackageSSOP
MountingSurface Mount
Quick Jump:
Technical Specifications
Maxim MAX3250EAI+ technical specifications.
General
| Package/Case | SSOP |
| Data Rate | 250Kbps |
| Height | 1.78mm |
| Interface | RS-232 |
| Lead Free | Lead Free |
| Length | 10.33mm |
| Logic Function | Transceiver |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 3V |
| Mount | Surface Mount |
| Number of Drivers | 2 |
| Number of Receivers | 2 |
| Number of Transceivers | 1 |
| Number of Transmitters | 2 |
| Operating Supply Current | 35mA |
| Operating Supply Voltage | 5V |
| Package Quantity | 46 |
| Packaging | Rail/Tube |
| Propagation Delay | 0.4us |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Simplex/Duplex | Full Duplex |
| Weight | 0.080001oz |
| Width | 5.38mm |
Compliance
| RoHS | Compliant |
Datasheet
Maxim MAX3250EAI+ Datasheet
Download the complete datasheet for Maxim MAX3250EAI+ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

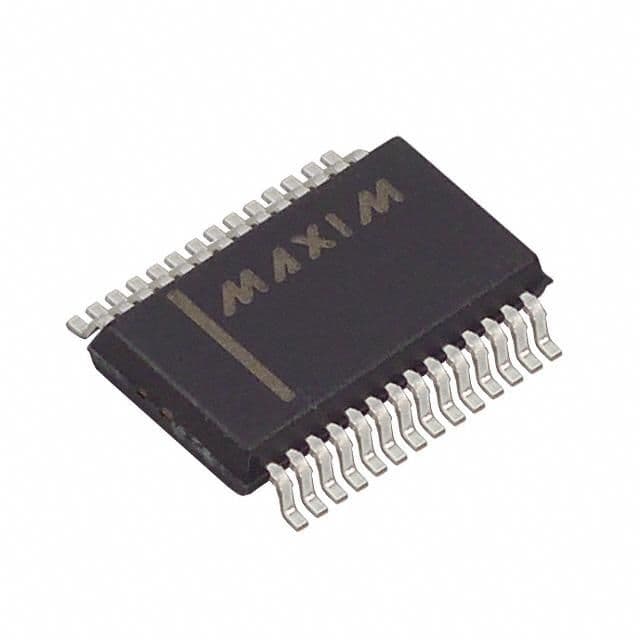

Product Images
