Full-duplex RS-232 transceiver IC, operating at 460Kbps data rates. Features one transmitter and one receiver, supporting 4 I/Os. Operates from a 4.5V to 5.5V supply, with a typical 5V operating voltage and 250uA supply current. Packaged in a compact 10-UMAX surface-mount form factor with dimensions of 3.05mm x 3.05mm x 0.95mm. Offers 500mV receiver hysteresis and a 0.15us propagation delay, with an operating temperature range of -40°C to 85°C. RoHS compliant.
PackageUMAX
Current250uA
MountingSurface Mount
Quick Jump:
Technical Specifications
Maxim MAX3311EUB+ technical specifications.
General
| Package/Case | UMAX |
| Data Rate | 460Kbps |
| Height | 0.95mm |
| Interface | RS-232 |
| Length | 3.05mm |
| Logic Function | Transceiver, Receiver |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 4.5V |
| Mount | Surface Mount |
| Number of Drivers | 1 |
| Number of I/Os | 4 |
| Number of Receivers | 1 |
| Number of Transceivers | 1 |
| Number of Transmitters | 1 |
| Operating Supply Voltage | 5V |
| Package Quantity | 50 |
| Packaging | Rail/Tube |
| Propagation Delay | 0.15us |
| Reach SVHC Compliant | Unknown |
| Receiver Hysteresis | 500mV |
| RoHS Compliant | Yes |
| Simplex/Duplex | Full Duplex |
| Supply Current | 250uA |
| Width | 3.05mm |
Compliance
| RoHS | Compliant |
Datasheet
Maxim MAX3311EUB+ Datasheet
Download the complete datasheet for Maxim MAX3311EUB+ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

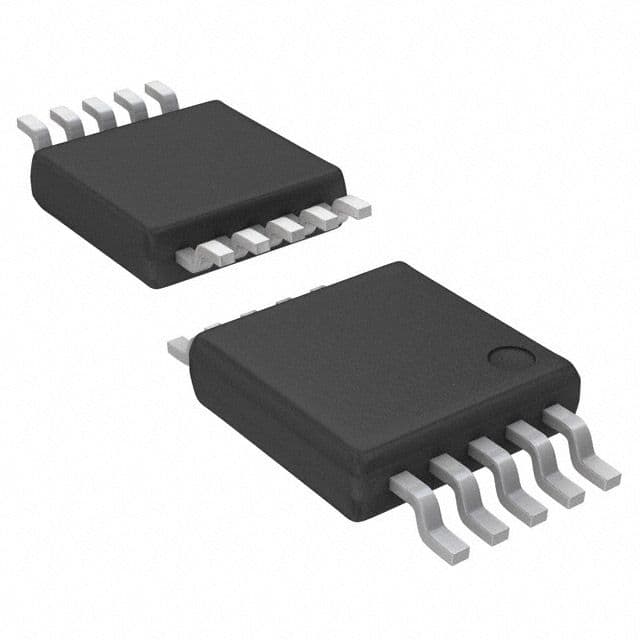

Product Images
