Half-duplex RS485/RS422 bus transceiver IC, operating at 3.3V with a 15Mbps data rate. Features 1 driver and 1 receiver in a surface-mount 8-pin SOIC package. Offers a wide operating temperature range of -40°C to 85°C and a propagation delay of 62ns. RoHS compliant.
PackageSOIC
MountingSurface Mount
Quick Jump:
Technical Specifications
Maxim MAX3485EESA+ technical specifications.
General
Package/Case
SOIC
Data Rate
15Mbps
Height
1.5mm
Length
5mm
Logic Function
Transceiver
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Power Dissipation
471mW
Mount
Surface Mount
Number of Drivers
1
Number of Receivers
1
Number of Transceivers
1
Number of Transmitters
1
Operating Supply Current
1.1mA
Operating Supply Voltage
3.3V
Output Current
20uA
Output Voltage
3V
Package Quantity
100
Packaging
Rail/Tube
Propagation Delay
62ns
RoHS Compliant
Yes
Simplex/Duplex
Half Duplex
Weight
0.019048oz
Width
4mm
Compliance
RoHS
Compliant
Datasheet
Maxim MAX3485EESA+ Datasheet
Download the complete datasheet for Maxim MAX3485EESA+ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

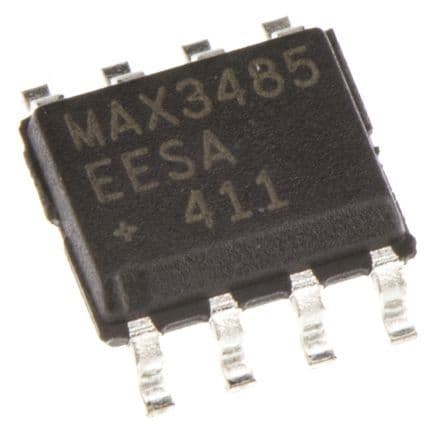

Product Images
