Stereo audio amplifier IC featuring a differential amplifier type. Offers a 600kHz gain bandwidth product and 1V/µs slew rate. Operates with a 2.4V to 5.5V supply voltage range and 750µA operating supply current. Provides 70dB common mode rejection ratio and 95dB power supply rejection ratio. Surface mountable in a 16-TQFN package with dimensions of 4.1mm x 4.1mm x 0.75mm.
MountingSurface Mount
Quick Jump:
Technical Specifications
Maxim MAX4063ETE+ technical specifications.
General
| Amplifier Type | DIFFERENTIAL |
| Common Mode Rejection Ratio | 70dB |
| Gain Bandwidth Product | 600kHz |
| Height | 0.75mm |
| Input Bias Current | 500uA |
| Input Offset Voltage (Vos) | 1mV |
| Length | 4.1mm |
| Max Input Voltage | 5.5V |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Power Dissipation | 2W |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 2.4V |
| Mount | Surface Mount |
| Number of Channels | 2 |
| Operating Supply Current | 750uA |
| Package Quantity | 75 |
| Packaging | Rail/Tube |
| Power Supply Rejection Ratio (PSRR) | 95dB |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Slew Rate | 1V/µs |
| Voltage Gain | 26.02dB |
| Width | 4.1mm |
Compliance
| RoHS | Compliant |
Datasheet
Maxim MAX4063ETE+ Datasheet
Download the complete datasheet for Maxim MAX4063ETE+ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

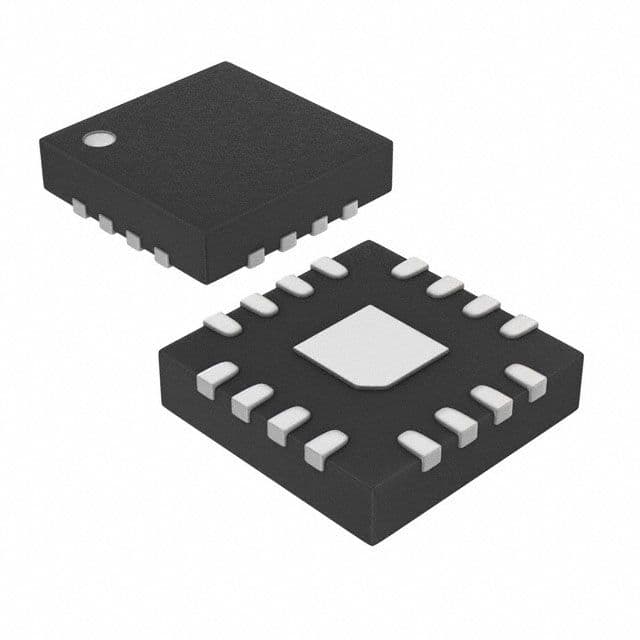

Product Images
