Logarithmic amplifier IC featuring a 5MHz gain bandwidth product and 12V/µs slew rate. This single-channel, surface-mount device operates from a 2.7V to 5.5V dual supply or 2.7V to 11V single supply, with a typical operating supply current of 5mA. It offers 1mV input offset voltage and 1nA input bias current, with a maximum output current of 58mA per channel. The component is housed in a 4.1mm x 4.1mm x 0.75mm QFN package and is RoHS compliant.
PackageQFN
MountingSurface Mount
Quick Jump:
Technical Specifications
Maxim MAX4206ETE+ technical specifications.
General
| Package/Case | QFN |
| Gain Bandwidth Product | 5MHz |
| Height | 0.75mm |
| Input Bias Current | 1nA |
| Input Offset Voltage (Vos) | 1mV |
| Lead Free | Lead Free |
| Length | 4.1mm |
| Max Dual Supply Voltage | 5.5V |
| Min Dual Supply Voltage | 2.7V |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Power Dissipation | 1.349W |
| Max Supply Voltage | 11V |
| Min Supply Voltage | 2.7V |
| Mount | Surface Mount |
| Number of Amplifiers | 1 |
| Number of Channels | 1 |
| Number of Circuits | 1 |
| Operating Supply Current | 5mA |
| Operating Supply Voltage | 9V |
| Output Current per Channel | 58mA |
| Package Quantity | 75 |
| Packaging | Rail/Tube |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Series | MAX4206 |
| Slew Rate | 12V/µs |
| Width | 4.1mm |
Compliance
| RoHS | Compliant |
Datasheet
Maxim MAX4206ETE+ Datasheet
Download the complete datasheet for Maxim MAX4206ETE+ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

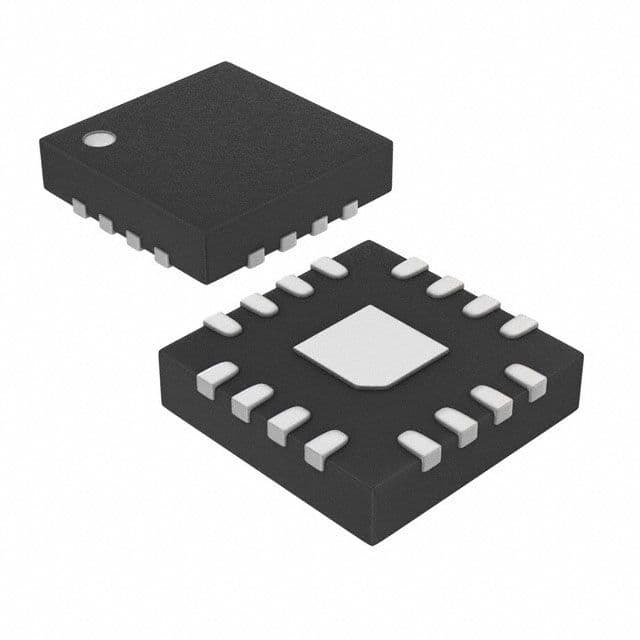

Product Images
