High-performance 8-channel multiplexed amplifier IC featuring a 150MHz -3dB bandwidth and 150MHz gain bandwidth product. This surface-mount component operates from a single or dual supply voltage range of 2V to 10.5V, with a maximum operating temperature of 85°C. Delivering 95mA output current per channel, it boasts a 540V/µs slew rate and a typical operating supply current of 6.1mA. Packaged in an 8-pin UMAX with dimensions of 3.1mm x 3.1mm x 0.95mm, this RoHS compliant integrated circuit is ideal for demanding amplification applications.
PackageUMAX
MountingSurface Mount
Quick Jump:
Technical Specifications
Maxim MAX4313EUA+ technical specifications.
General
| -3db Bandwidth | 150MHz |
| Package/Case | UMAX |
| Gain Bandwidth Product | 150MHz |
| Height | 0.95mm |
| Length | 3.1mm |
| Max Dual Supply Voltage | 5.25V |
| Min Dual Supply Voltage | 2V |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Power Dissipation | 471mW |
| Max Supply Voltage | 10.5V |
| Min Supply Voltage | 4V |
| Mount | Surface Mount |
| Number of Amplifiers | 1 |
| Number of Channels | 8 |
| Number of Circuits | 1 |
| Operating Supply Current | 6.1mA |
| Output Current | 95mA |
| Output Current per Channel | 95mA |
| Package Quantity | 50 |
| Packaging | Rail/Tube |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Slew Rate | 540V/µs |
| Supply Type | Single, Dual |
| Width | 3.1mm |
Compliance
| RoHS | Compliant |
Datasheet
Maxim MAX4313EUA+ Datasheet
Download the complete datasheet for Maxim MAX4313EUA+ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

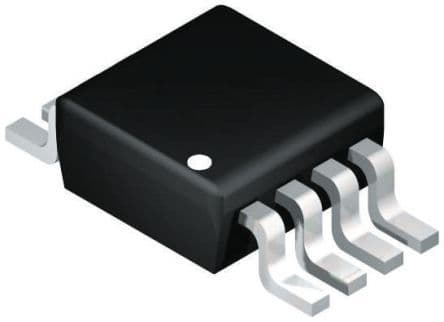

Product Images
