Dual-channel, general-purpose operational amplifier featuring a 10MHz bandwidth and 3V/µs slew rate. This BICMOS IC offers a 120dB voltage gain and 48mA output current per channel, with a low 2.5mA operating supply current. Designed for surface mounting in a compact UMAX package, it operates from 2.7V to 5.5V and boasts a 90dB CMRR and 1pA input bias current. Operating temperature range spans -40°C to 125°C.
PackageUMAX
Current2.2mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Maxim MAX4477AUA+ technical specifications.
General
Amplifier Type
GENERAL PURPOSE
Bandwidth
10MHz
Package/Case
UMAX
Common Mode Rejection Ratio
90dB
Gain Bandwidth Product
10MHz
Height
0.95mm
Input Bias Current
1pA
Input Offset Voltage (Vos)
70uV
Length
3.1mm
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Supply Voltage
5.5V
Min Supply Voltage
2.7V
Mount
Surface Mount
Number of Amplifiers
2
Number of Channels
2
Number of Circuits
2
Operating Supply Current
2.5mA
Output Current
48mA
Output Current per Channel
48mA
Packaging
Rail/Tube
Radiation Hardening
No
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Slew Rate
3V/µs
Supply Current
2.2mA
Technology
BICMOS
Voltage Gain
120dB
Width
3.1mm
Compliance
RoHS
Compliant
Datasheet
Maxim MAX4477AUA+ Datasheet
Download the complete datasheet for Maxim MAX4477AUA+ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

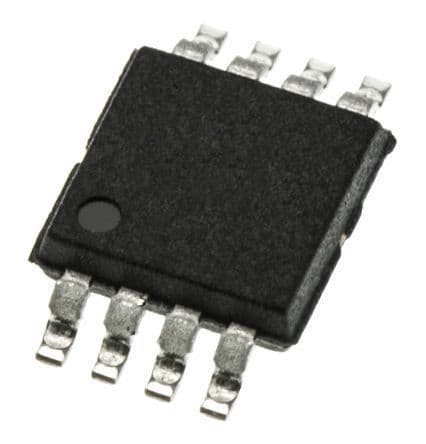

Product Images
