Surface mount multiplexer IC featuring 4x1 logic function. Operates with a single supply voltage ranging from 1.8V to 5.5V, with a typical operating voltage of 5V. Offers a 200MHz bandwidth and 60ns propagation delay. On-state resistance is 60 Ohms. Housed in a compact 10-pin UMAX package with dimensions of 3.05mm x 3.05mm x 0.95mm. RoHS compliant with a maximum power dissipation of 330mW.
PackageUMAX
MountingSurface Mount
Quick Jump:
Technical Specifications
Maxim MAX4704EUB+ technical specifications.
General
| Bandwidth | 200MHz |
| Package/Case | UMAX |
| Height | 0.95mm |
| Length | 3.05mm |
| Logic Function | Multiplexer |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Power Dissipation | 330mW |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 1.8V |
| Mount | Surface Mount |
| Number of Channels | 1 |
| Number of Circuits | 1 |
| Number of Switches | 1 |
| On-State Resistance | 60R |
| Operating Supply Current | 1uA |
| Operating Supply Voltage | 5V |
| Package Quantity | 50 |
| Packaging | Rail/Tube |
| Propagation Delay | 60ns |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Supply Type | Single |
| Width | 3.05mm |
Compliance
| RoHS | Compliant |
Datasheet
Maxim MAX4704EUB+ Datasheet
Download the complete datasheet for Maxim MAX4704EUB+ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

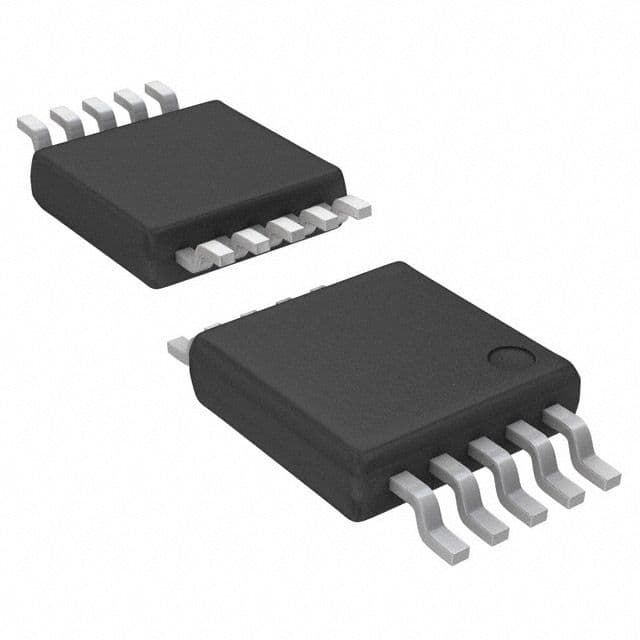

Product Images
