Single-pole, single-throw (SPST) analog switch IC for surface mount applications. Features a wide operating voltage range from 1.6V to 3.6V, with a low maximum supply current of 200nA and typical operating supply current of 40nA. Offers an on-state resistance of 400mR and operates within a temperature range of -40°C to 85°C. Packaged in tape and reel for high-volume assembly.
MountingSurface Mount
Quick Jump:
Technical Specifications
Maxim MAX4715EXK+T technical specifications.
General
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Power Dissipation | 247mW |
| Max Supply Current | 200nA |
| Max Supply Voltage | 3.6V |
| Min Supply Voltage | 1.6V |
| Mount | Surface Mount |
| Number of Channels | 1 |
| Number of Circuits | 1 |
| On-State Resistance | 400mR |
| Operating Supply Current | 40nA |
| Package Quantity | 2500 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Supply Type | Single |
| Throw Configuration | SPST |
| Weight | 0.000705oz |
Compliance
| RoHS | Compliant |
Datasheet
Maxim MAX4715EXK+T Datasheet
Download the complete datasheet for Maxim MAX4715EXK+T to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

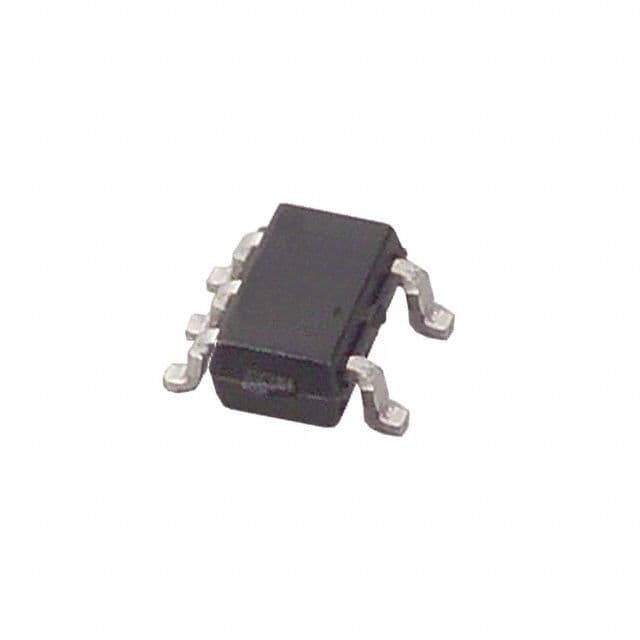

Product Images
