Surface mount multiplexer IC with a 4:1 logic function, operating from a 1.6V to 3.6V single supply voltage. Features a 90MHz bandwidth and 800mΩ on-state resistance. Packaged in a compact 10-pin UMAX with dimensions of 3.05mm x 3.05mm x 0.95mm. Operates across a temperature range of -40°C to 85°C with a low 1µA operating supply current.
PackageUMAX
MountingSurface Mount
Quick Jump:
Technical Specifications
Maxim MAX4734EUB+ technical specifications.
General
| Bandwidth | 90MHz |
| Package/Case | UMAX |
| Height | 0.95mm |
| Length | 3.05mm |
| Logic Function | Multiplexer |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Power Dissipation | 444mW |
| Max Supply Voltage | 3.6V |
| Min Supply Voltage | 1.6V |
| Mount | Surface Mount |
| Number of Channels | 1 |
| Number of Circuits | 1 |
| Number of Switches | 1 |
| On-State Resistance | 800mR |
| Operating Supply Current | 1uA |
| Operating Supply Voltage | 3V |
| Package Quantity | 50 |
| Packaging | Rail/Tube |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Supply Type | Single |
| Width | 3.05mm |
Compliance
| RoHS | Compliant |
Datasheet
Maxim MAX4734EUB+ Datasheet
Download the complete datasheet for Maxim MAX4734EUB+ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

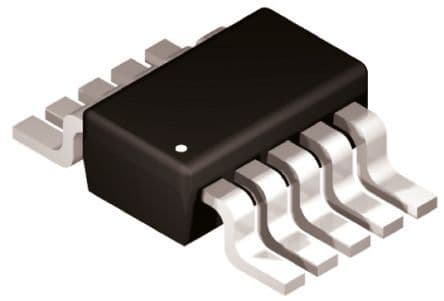

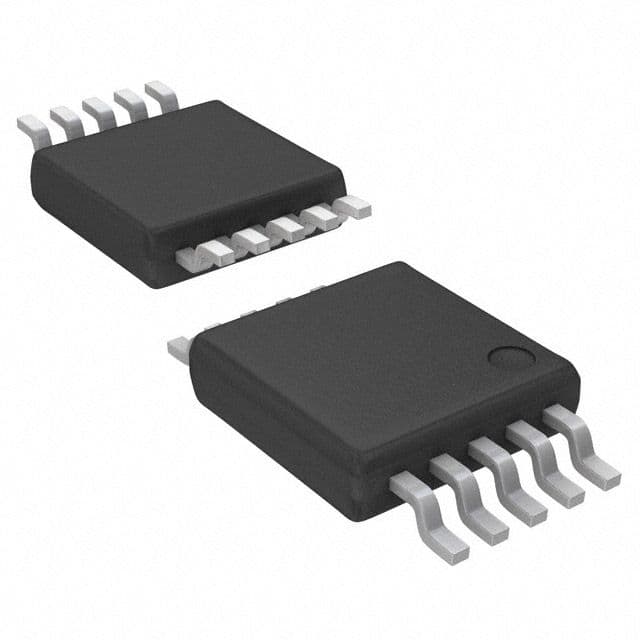

Product Images
