8-bit voltage-output digital-to-analog converter (DAC) featuring a single channel and parallel interface. This integrated circuit offers a 40MS/s sampling rate and a 25ns settling time. It operates with a supply voltage range of 2.7V to 3.3V and a maximum power dissipation of 762mW. The component boasts an integral nonlinearity (INL) of 1LSB and a full-scale error of 20LSB. Designed for surface mounting, it is available in a QSOP package and is RoHS compliant.
PackageQSOP
Current4.2mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Maxim MAX5190BEEG+ technical specifications.
General
| Package/Case | QSOP |
| Differential Output | Yes |
| Full Scale Error | 20LSB |
| Input Type | PARALLEL |
| Integral Nonlinearity (INL) | 1LSB |
| Interface | Parallel |
| Lead Free | Lead Free |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Power Dissipation | 762mW |
| Max Supply Voltage | 3.3V |
| Min Supply Voltage | 2.7V |
| Mount | Surface Mount |
| Number of Bits | 8 |
| Number of Channels | 1 |
| Number of Converters | 1 |
| Number of D/A Converters | 1 |
| Number of Outputs | 1 |
| Output Type | Voltage |
| Package Quantity | 50 |
| Packaging | Rail/Tube |
| Reach SVHC Compliant | No |
| Resolution | 8b |
| RoHS Compliant | Yes |
| Sampling Rate | 40MS/s |
| Settling Time | 25ns |
| Supply Current | 4.2mA |
| Termination | SMD/SMT |
Compliance
| RoHS | Compliant |
Datasheet
Maxim MAX5190BEEG+ Datasheet
Download the complete datasheet for Maxim MAX5190BEEG+ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

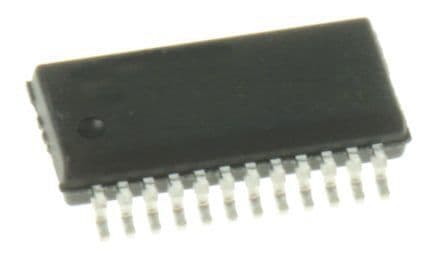

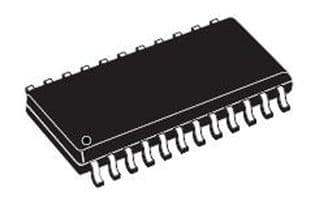

Product Images
