Non-volatile digital potentiometer with 50 kΩ resistance and 25% tolerance. Features a single, linear taper channel with 256 positions. Operates from a 2.7V to 5.25V supply voltage with a low 500nA supply current. SPI serial interface enables communication. Packaged in tape and reel for surface-mount assembly.
Current500nA
Resistance50kR
Quick Jump:
Technical Specifications
Maxim MAX5422ETA+T technical specifications.
General
| Height | 0.8mm |
| Interface | SPI, Serial |
| Length | 3.1mm |
| Max Operating Temperature | 85°C |
| Memory Type | Non-Volatile, , Volatile |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 5.25V |
| Min Supply Voltage | 2.7V |
| Number of Channels | 1 |
| Number of Circuits | 1 |
| Number of Positions | 256 |
| Number of Taps | 256 |
| Package Quantity | 2500 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| Resistance | 50kR |
| Resistance Tolerance | 25% |
| Resistor Type | Potentiometer |
| RoHS Compliant | Yes |
| Supply Current | 500nA |
| Taper | Linear |
| Termination | SMD/SMT |
| Width | 3.1mm |
Compliance
| RoHS | Compliant |
Datasheet
Maxim MAX5422ETA+T Datasheet
Download the complete datasheet for Maxim MAX5422ETA+T to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

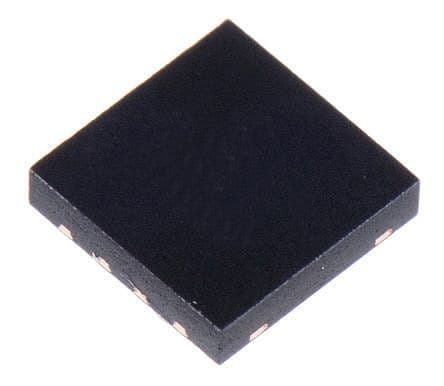

Product Images
