PackageCDIP
Voltage18V
Current8mA
MountingThrough Hole
Quick Jump:
Technical Specifications
Maxim MAX627MJA/883B technical specifications.
General
Package/Case
CDIP
Channel Type
Independent
Fall Time
30ns
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Max Output Current
2A
Max Power Dissipation
640mW
Max Supply Current
8mA
Max Supply Voltage
18V
Min Supply Voltage
4.5V
Mount
Through Hole
Number of Drivers
2
Number of Outputs
2
Package Quantity
50
Packaging
Rail/Tube
RoHS Compliant
No
Series
Military, MIL-STD-883
Supply Current
8mA
Voltage
18V
Compliance
RoHS
Not Compliant
Datasheet
Maxim MAX627MJA/883B Datasheet
Download the complete datasheet for Maxim MAX627MJA/883B to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

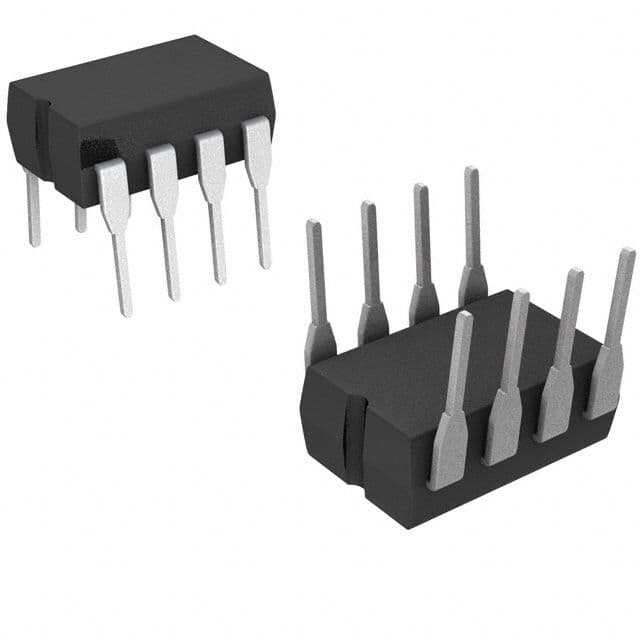

Product Images
