High-performance motor controller IC featuring I2C, SMBus, and 2-Wire interfaces. This component offers 4 outputs and operates within a wide temperature range of -40°C to 125°C. With a maximum supply voltage of 5.5V and a low supply current of 250uA, it is ideal for various applications. Packaged in QFN and supplied on tape and reel, this RoHS compliant electronic component ensures reliable performance.
PackageQFN
Current250uA
Quick Jump:
Technical Specifications
Maxim MAX6620ATI+T technical specifications.
General
| Package/Case | QFN |
| Interface | I2C, SMBus, 2-Wire |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Number of Outputs | 4 |
| Operating Supply Voltage | 5.5V |
| Package Quantity | 2500 |
| Packaging | Tape and Reel |
| RoHS Compliant | Yes |
| Supply Current | 250uA |
Compliance
| RoHS | Compliant |
Datasheet
Maxim MAX6620ATI+T Datasheet
Download the complete datasheet for Maxim MAX6620ATI+T to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

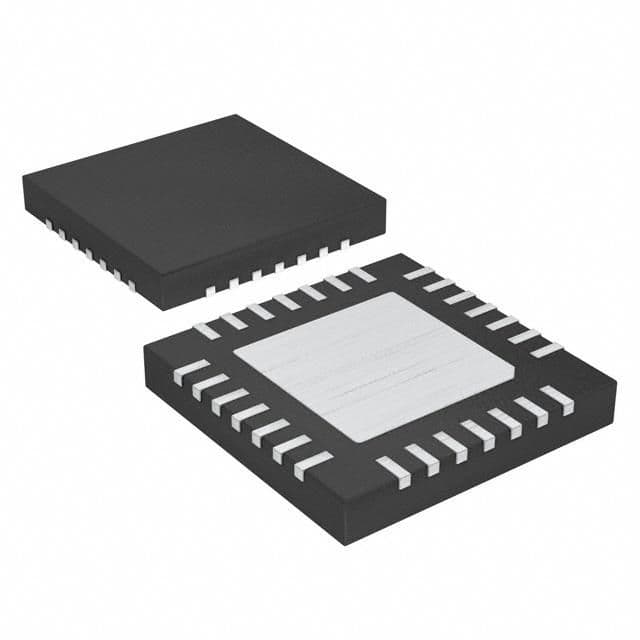

Product Images
